Cold wall storage freezer in four sizes from 10.7 to 19.1 cubic feet, with a temperature range of -5°F to +25°F.
Key Features
- Cold wall refrigeration system
- Casters with 2 locking
- Painted steel interior
- One hanging basket
- 12.75-foot cord / 9.75-foot accessible cord
- Environmentally friendly hydrocarbon refrigerant
- Temperature range of -5°F to +25°F
Advantages
- Bottom drain for easy defrost
- Easily moved for relocation or cleaning
- Energy efficient refrigeration system
Complies with 2017 DOE standards for commercial freezer with solid door

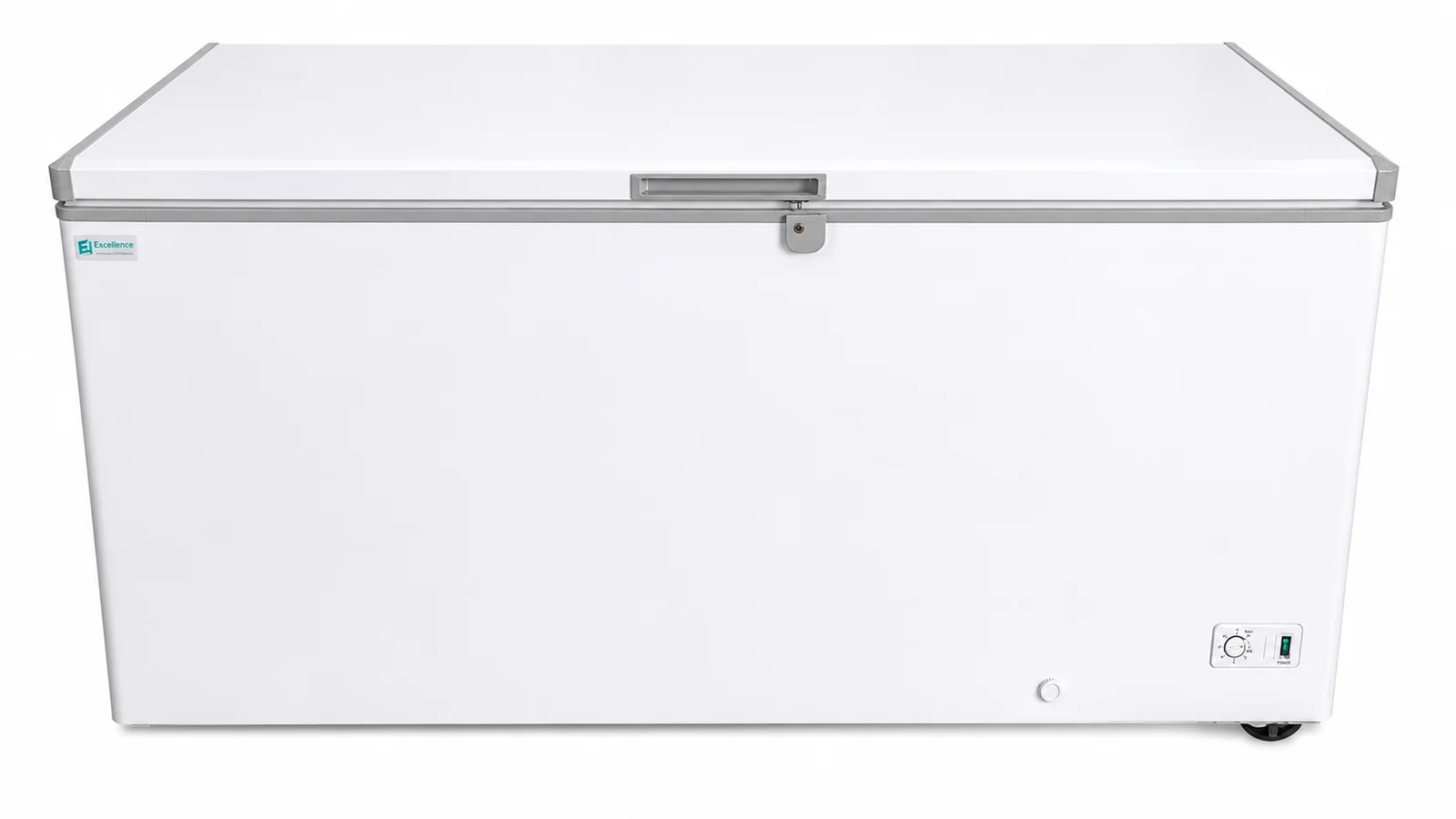

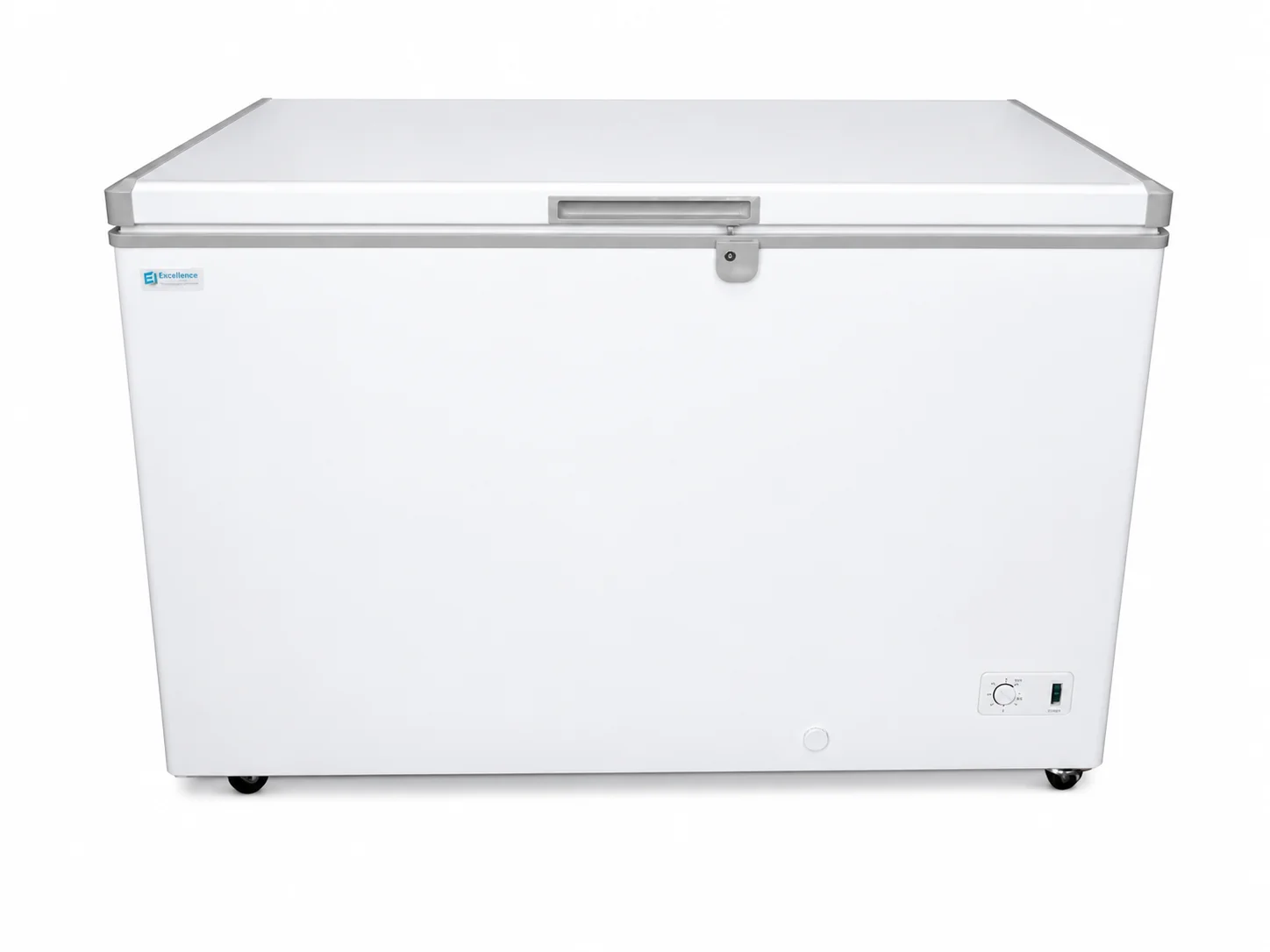

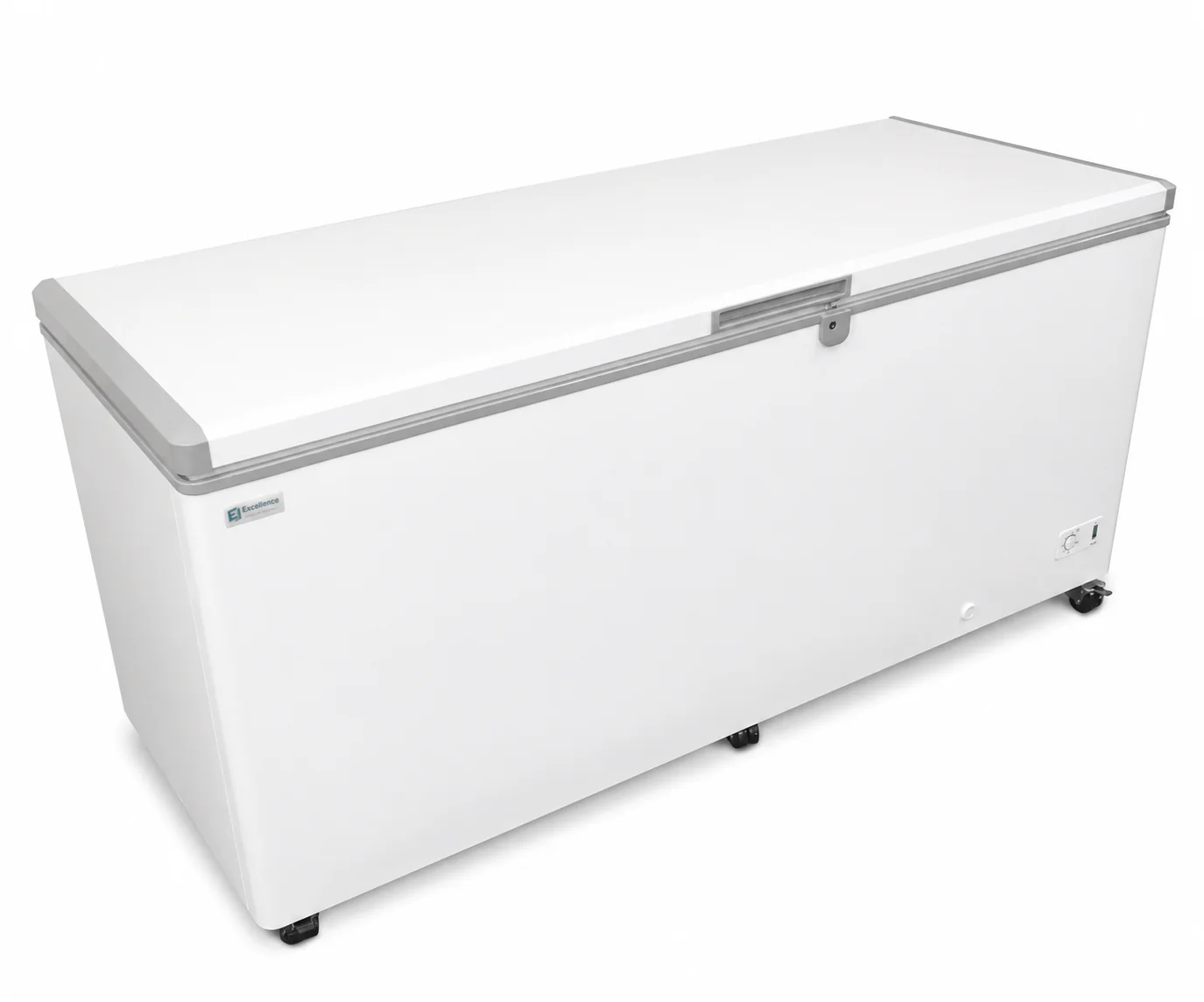

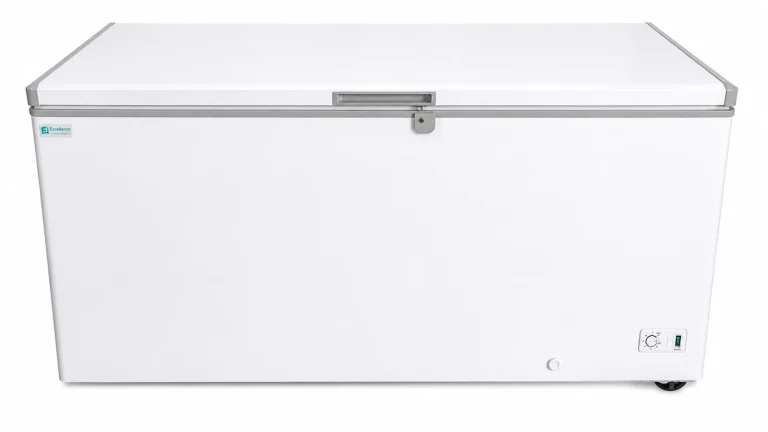

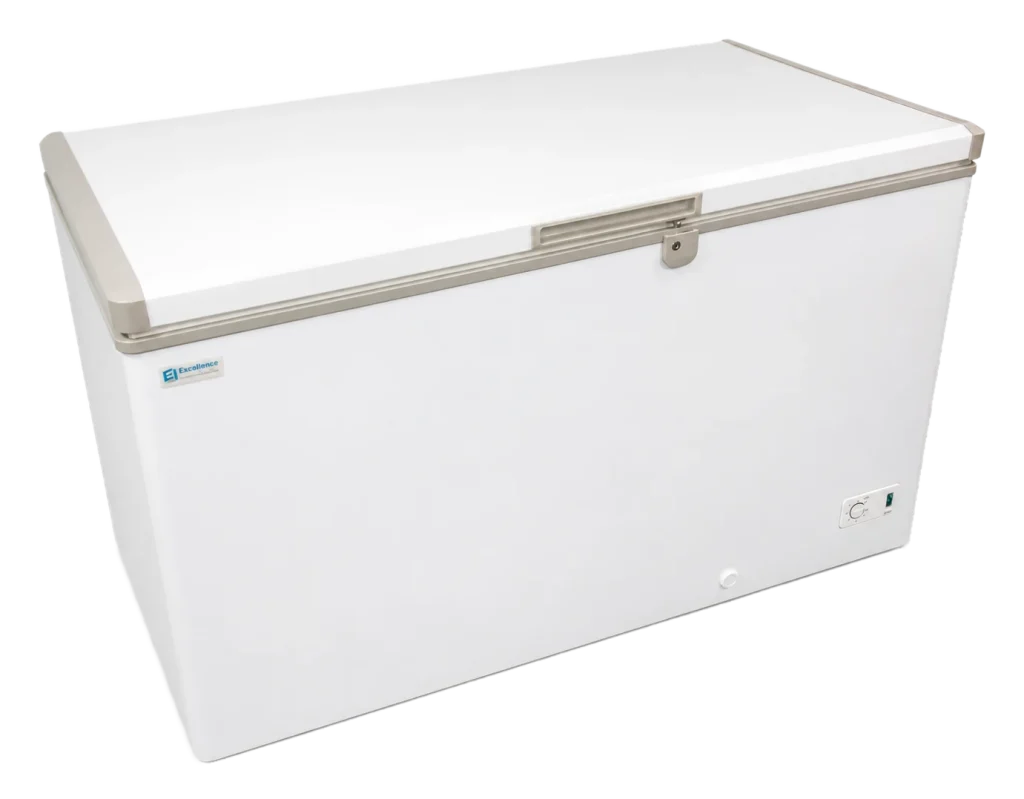

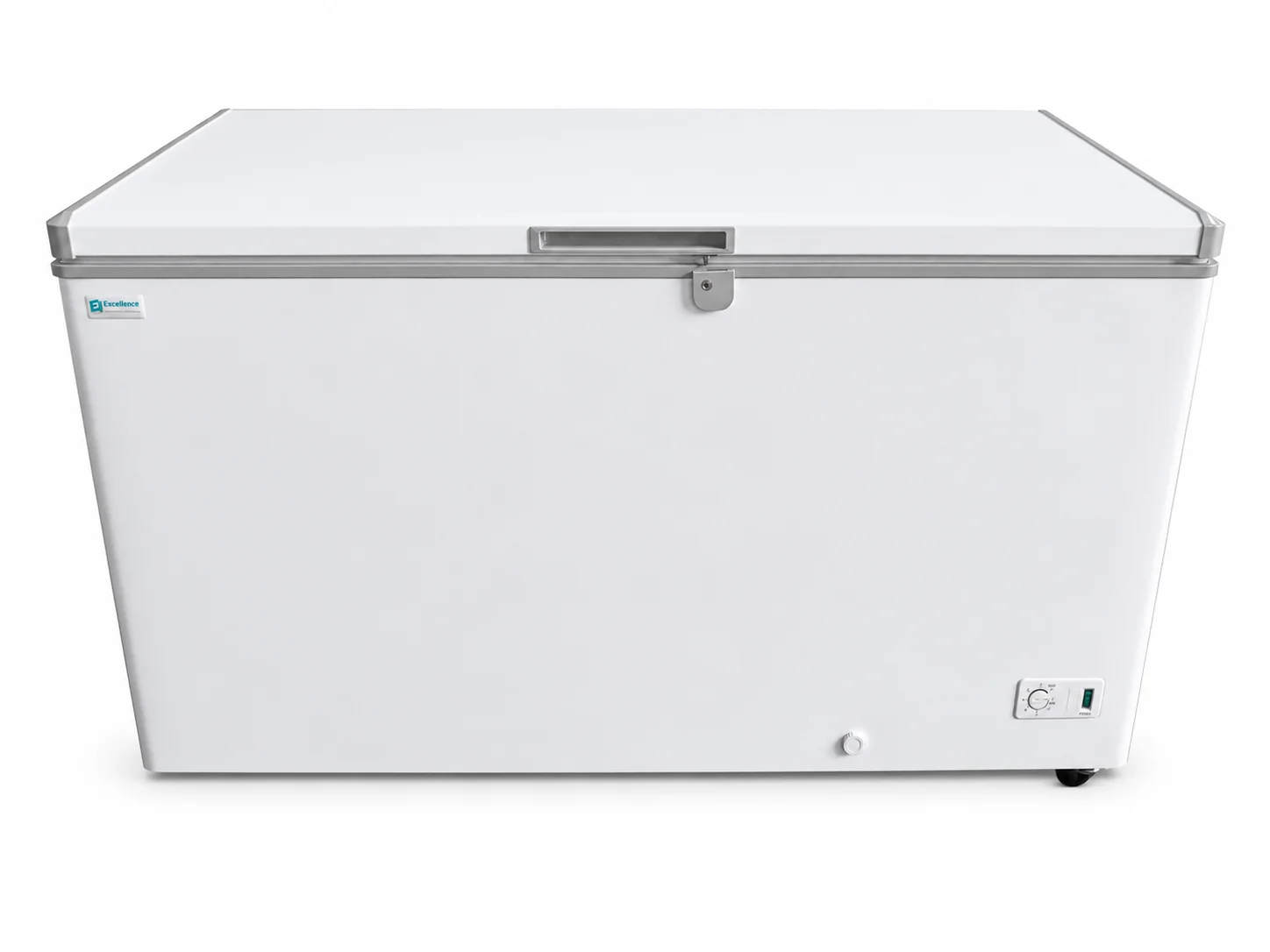

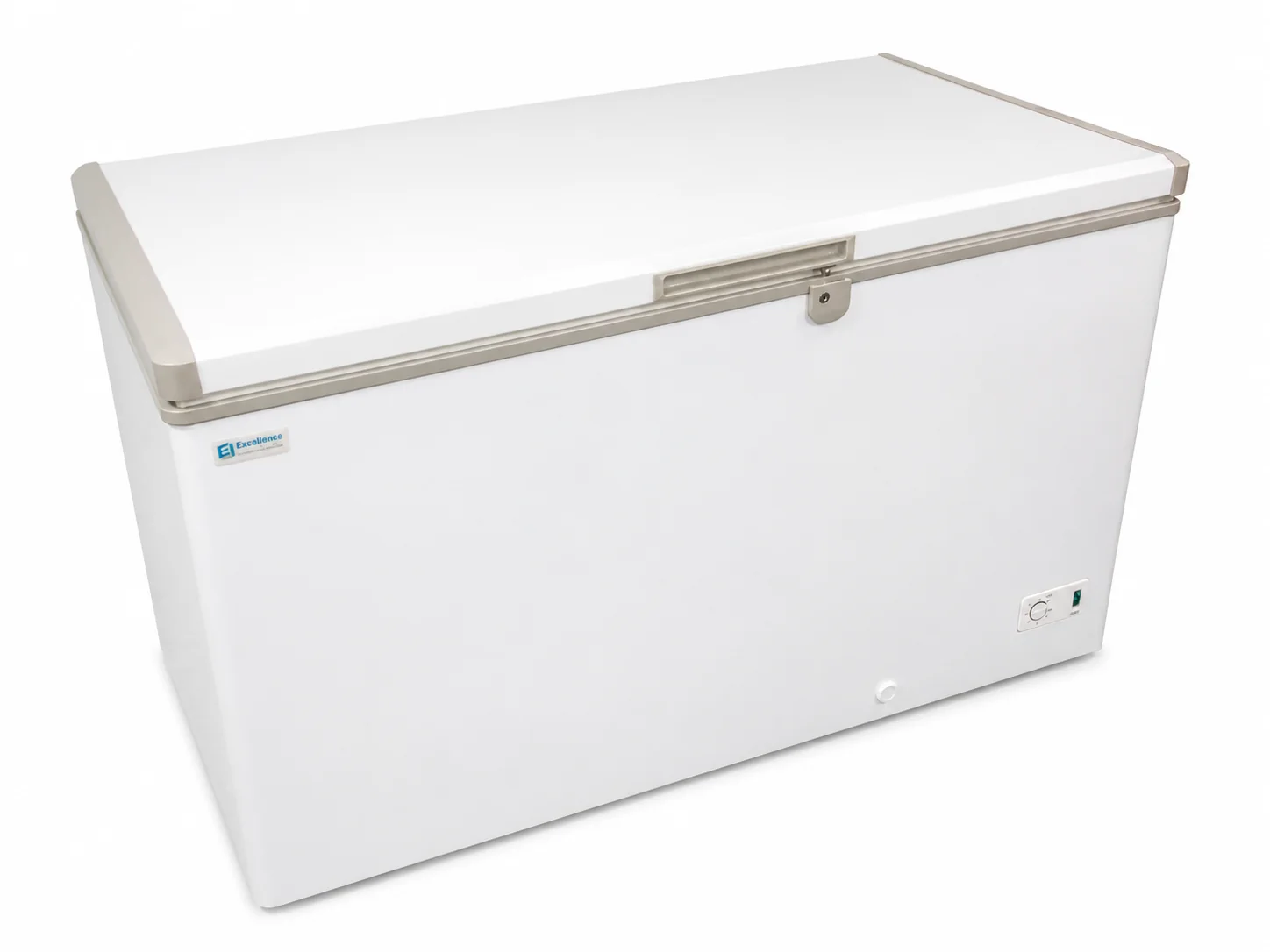

Photos
Specifications
| Model | BD-11 | BD-13 | BD-16 | BD-19 |
|---|---|---|---|---|
| Cubic Feet | 10.7 | 13.2 | 15.8 | 19.1 |
| Approx. Weight (Net) | 132 lb (60 kg) | 148 lb (67 kg) | 176 lb (80 kg) | 192 lb (87 kg) |
| Approx. Weight (Shipping) | 148 lb (67 kg) | 165 lb (75 kg) | 194 lb (88 kg) | 216 lb (98 kg) |
| Running Amps | 1.9 | 1.9 | 1.9 | 1.9 |
| Compressor HP | 1/8 | 1/8 | 1/5 | 1/5 |
| Refrigerant | R-600a | R-600a | R-290 | R-290 |
| Container Quantity | 90 | 75 | 66 | 56 |
Electrical: NEMA 5-15P · 115 / 60 / 1
Available Options
- Graphics
- Extra baskets

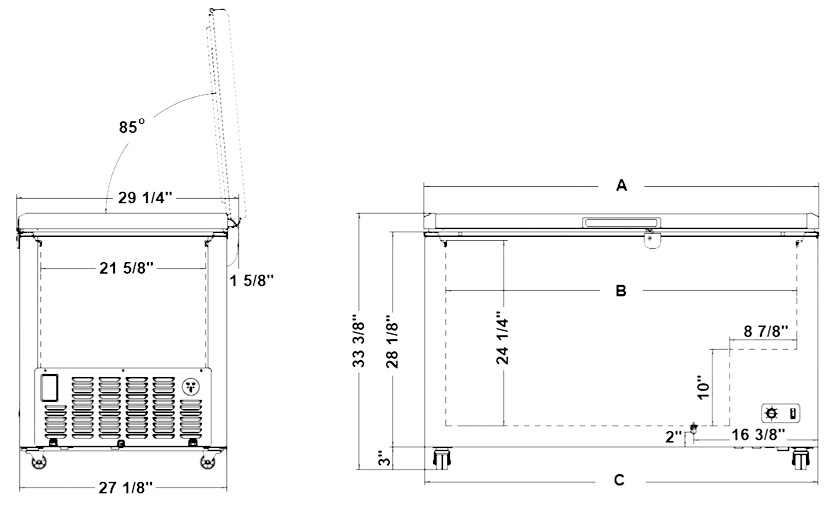

Dimensions
| Model | A | B | C |
|---|---|---|---|
| BD-11 | 43 1/2" | 37 3/4" | 43 3/8" |
| BD-13 | 51 3/4" | 46" | 51 5/8" |
| BD-16 | 59 1/2" | 53 3/4" | 59 1/4" |
| BD-19 | 70 7/8" | 65 1/8" | 70 3/4" |
