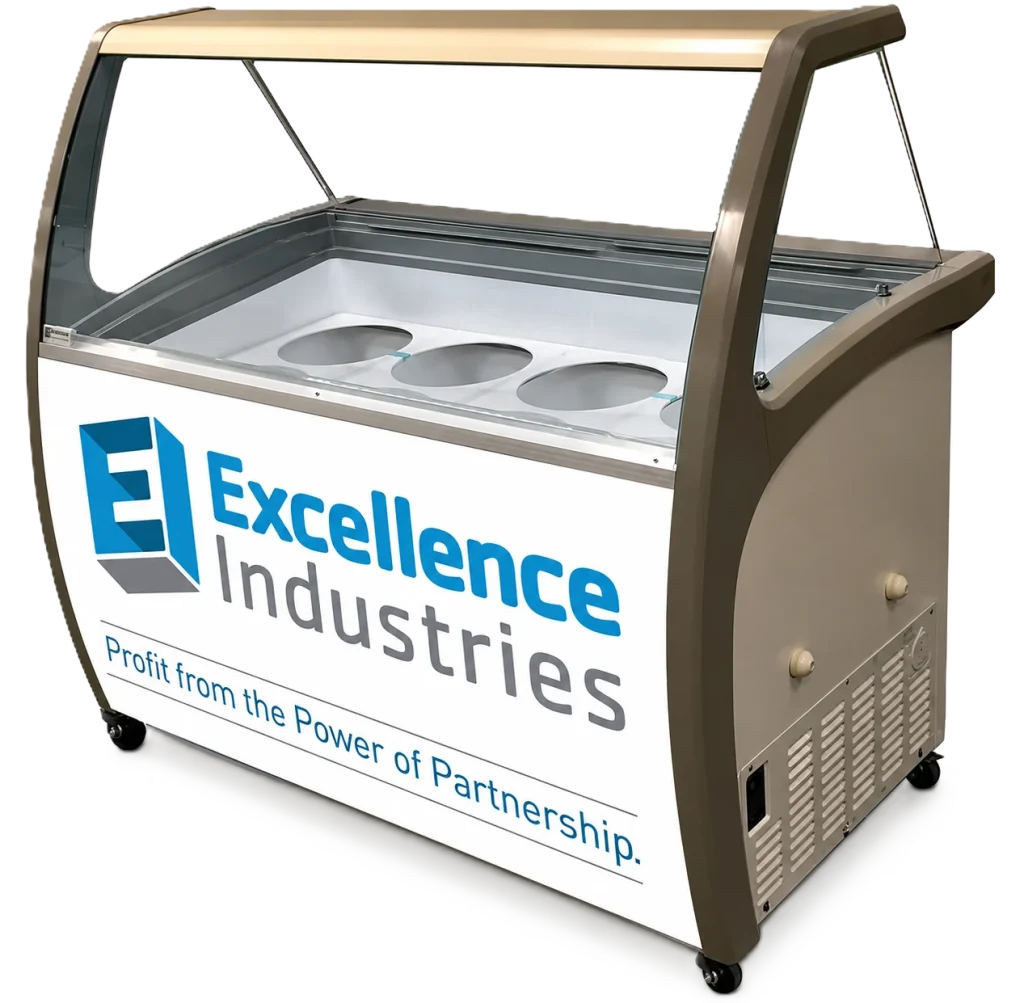

Curved-glass dipping cabinet in four widths, holding 4 to 10 displayed three-gallon tubs.
Key Features
- Sliding glass service doors
- Storage door in back
- Illuminated front panel
- Gelato racks or three-gallon tub racks included
- Internal LED and casters standard
- 12.75-foot cord / 9.75-foot accessible cord
- Environmentally friendly R-290 refrigerant
- Temperature range of -15°F to +15°F
Advantages
- Curved glass front improves product visibility at the counter
- Four widths cover 4 to 10 displayed three-gallon tubs
- Back storage door supports faster restocking during service
- Integrated lighting helps merchandise product at the counter
- Freestanding cabinet with casters simplifies placement
Complies with 2017 DOE standards for commercial ice cream freezer

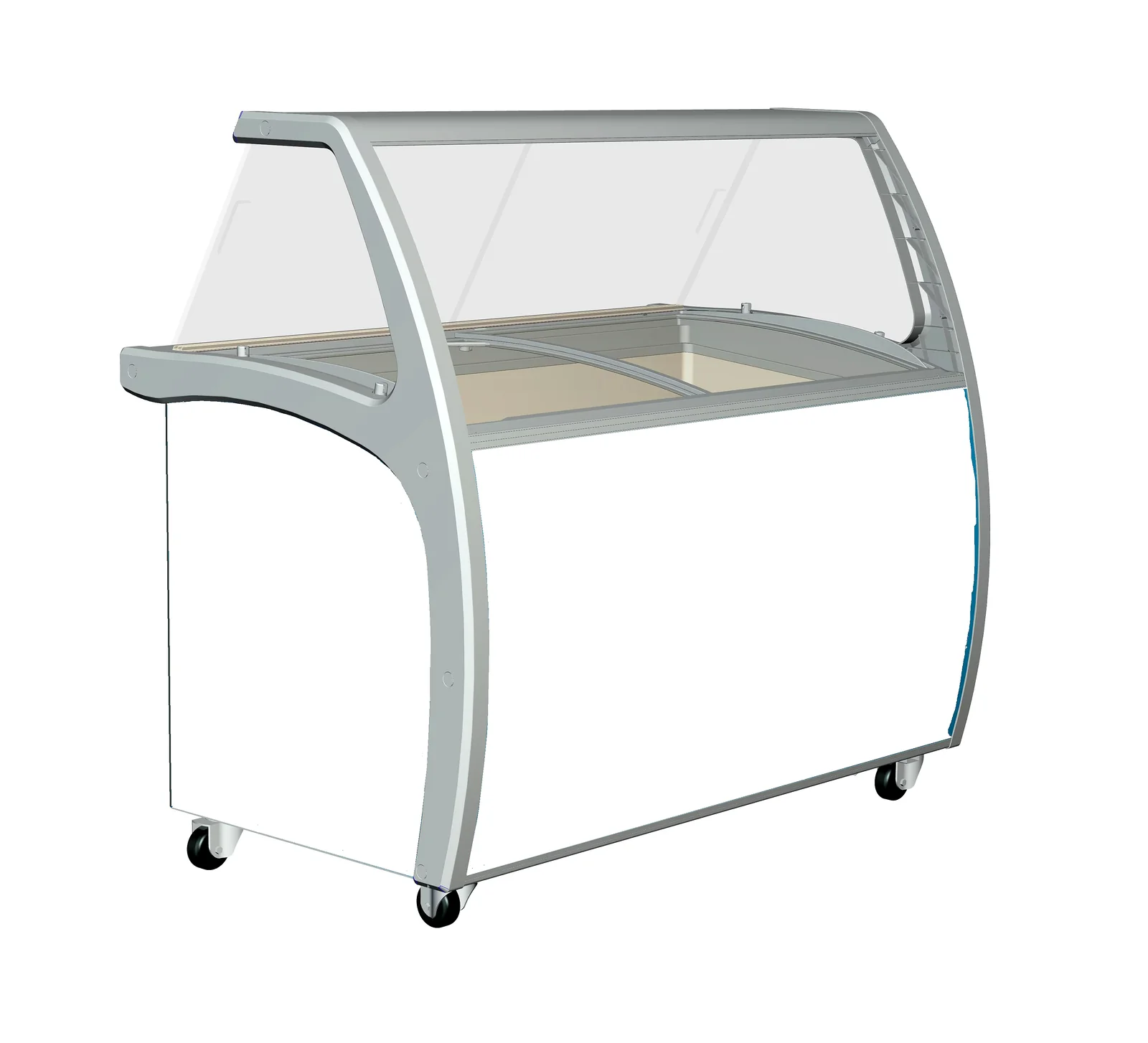

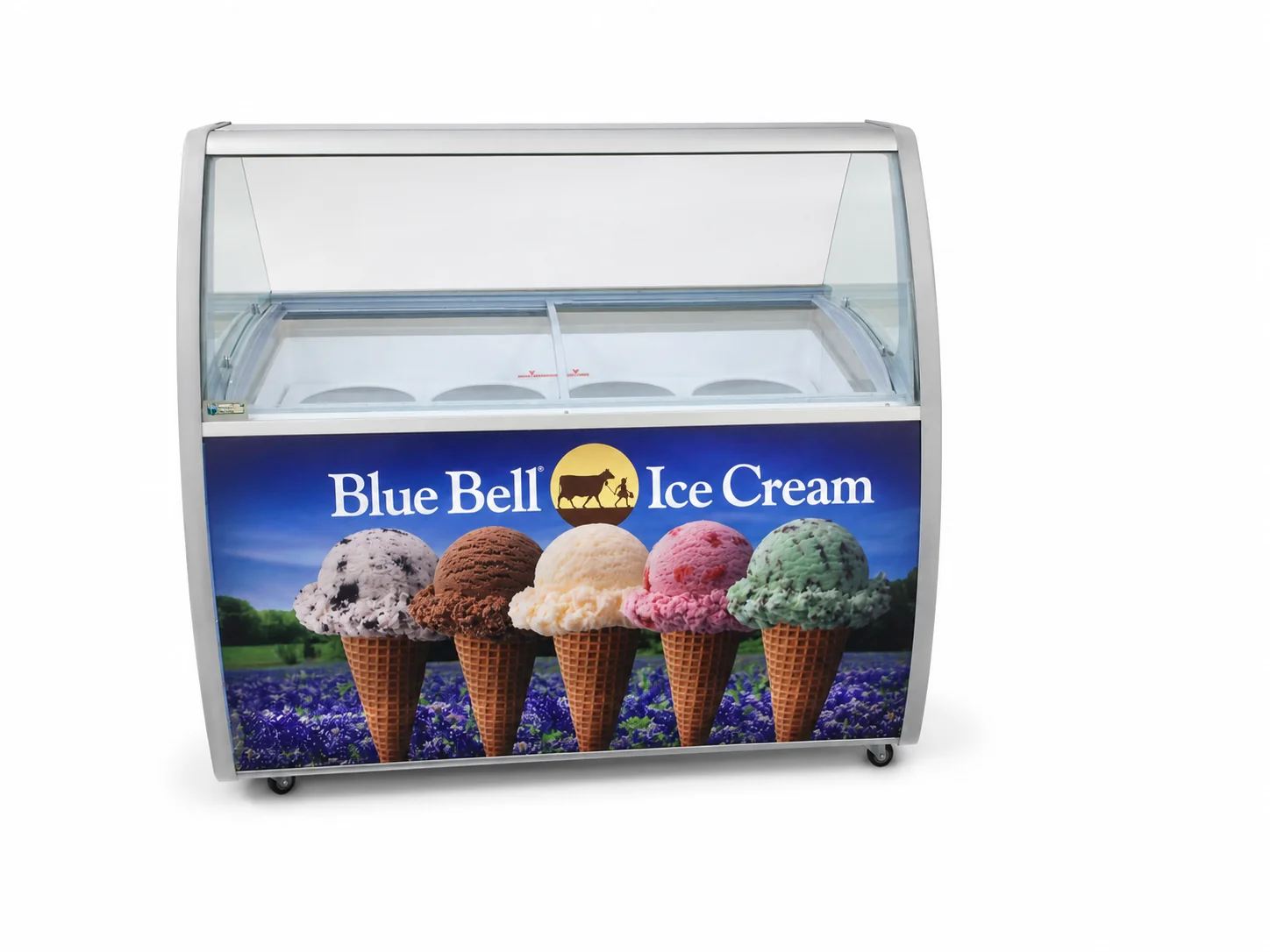

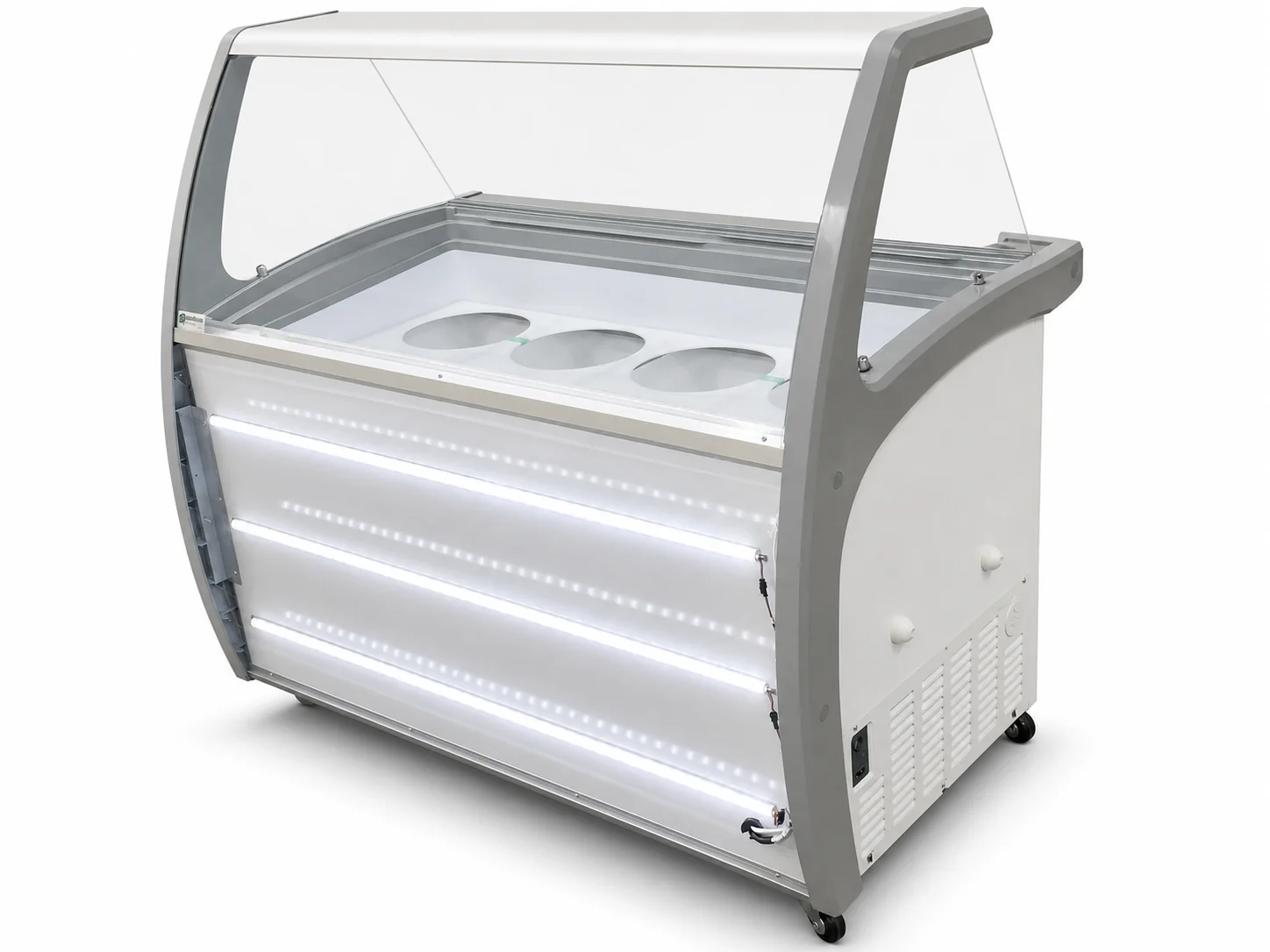

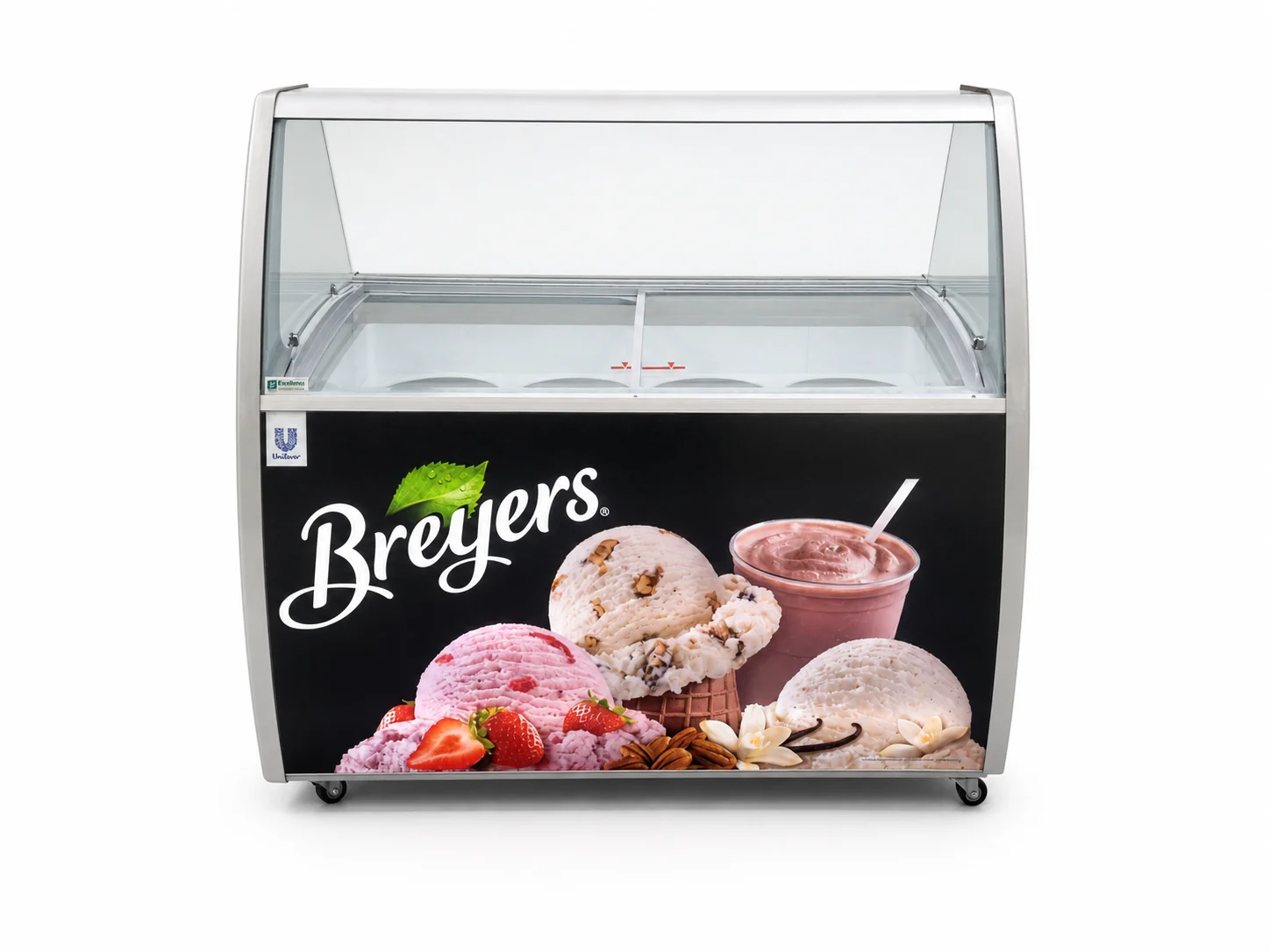

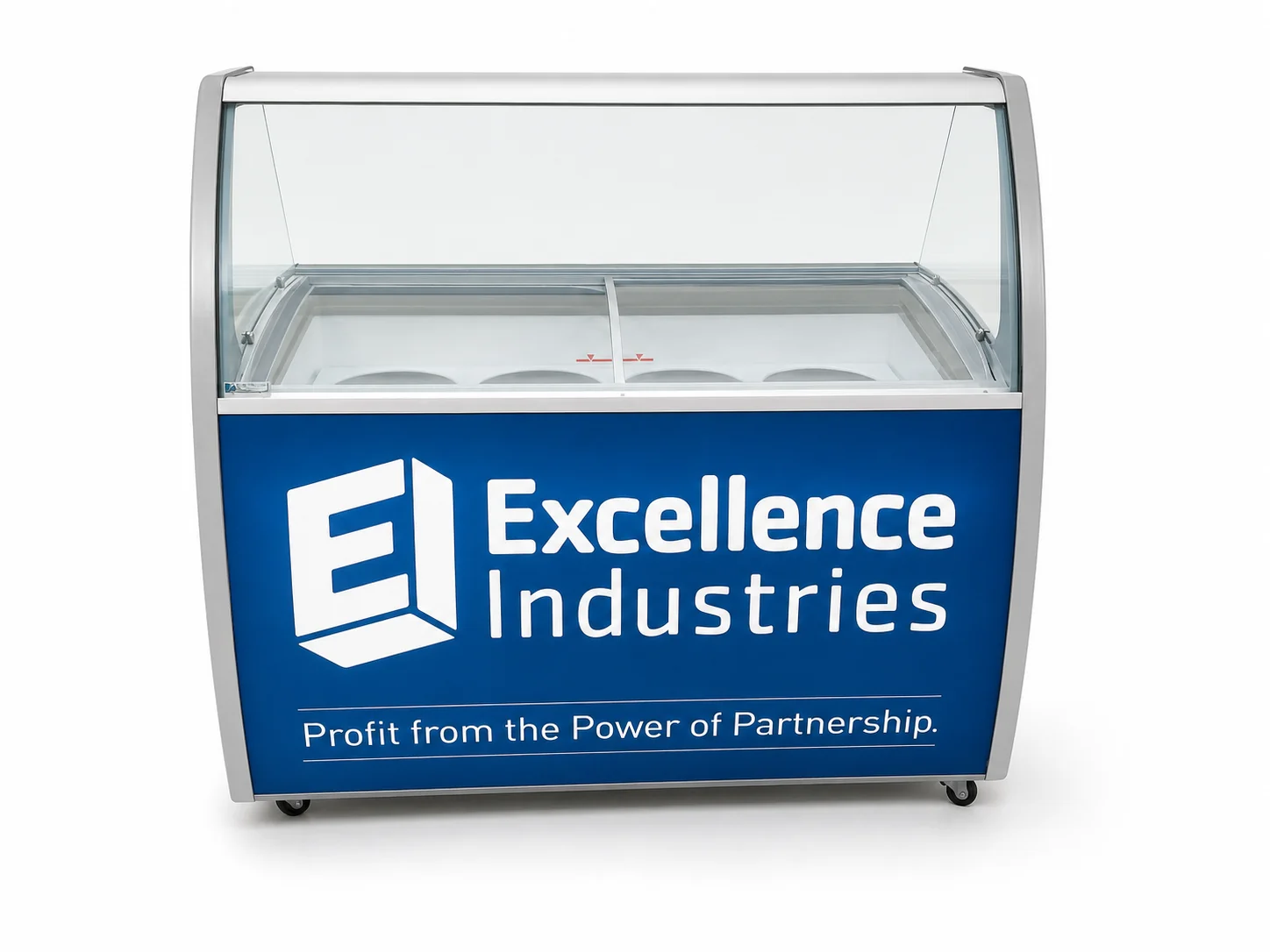

Photos
Specifications
| Model | DD-4 | DD-6 | DD-8 | DD-10 |
|---|---|---|---|---|
| Cubic Feet | 6.0 | 8.5 | 10.9 | 15.2 |
| Approx. Weight (Net) | 181 lb (82 kg) | 240 lb (109 kg) | 271 lb (123 kg) | 335 lb (152 kg) |
| Approx. Weight (Shipping) | 238 lb (108 kg) | 304 lb (138 kg) | 357 lb (162 kg) | 439 lb (199 kg) |
| Running Amps | 1.3 | 1.4 | 2 | 4.1 |
| Compressor HP | 1/7 | 1/5 | 1/4 | 1/2 |
| 3-Gal. Tubs Displayed / Storage | 4 / 2 | 6 / 4 | 8 / 6 | 10 / 10 |
| 5-Liter Pans Displayed / Storage | 4 / 6 | 6 / 10 | 9 / 14 | 12 / 20 |
| Container Quantity | 47 | 39 | 31 | 23 |
Electrical: NEMA 5-15P · 115 / 60 / 1
Available Options
- Illuminated front graphics
- Custom color plastic (container orders only)
- Dipper well

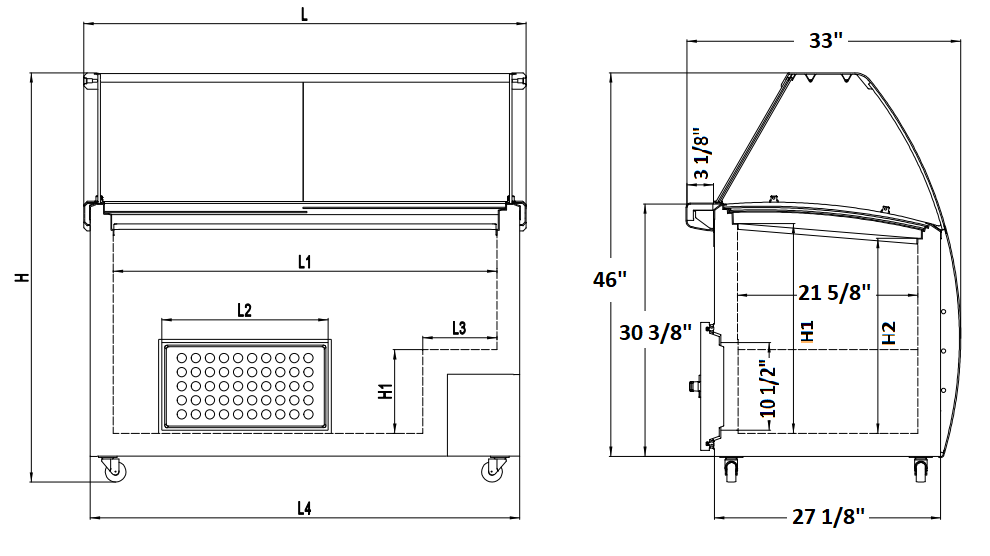

Dimensions
| Model | L | L1 | L2 | L3 | L4 | H | H1 | H2 |
|---|---|---|---|---|---|---|---|---|
| DD-4 | 32 7/8" | 25 7/8" | 12 5/8" | 8 1/2" | 31 3/8" | 49" | 9 7/8" | 23 5/8" |
| DD-6 | 42 1/2" | 35 3/8" | 20" | 8 1/2" | 41" | 50" | 9 7/8" | 23 5/8" |
| DD-8 | 53 1/8" | 46" | 20" | 8 7/8" | 51 5/8" | 50" | 10" | 25 1/8" |
| DD-10 | 67 5/8" | 60 5/8" | 20" | 8 1/2" | 66 1/8" | 50" | 9 7/8" | 23 5/8" |
