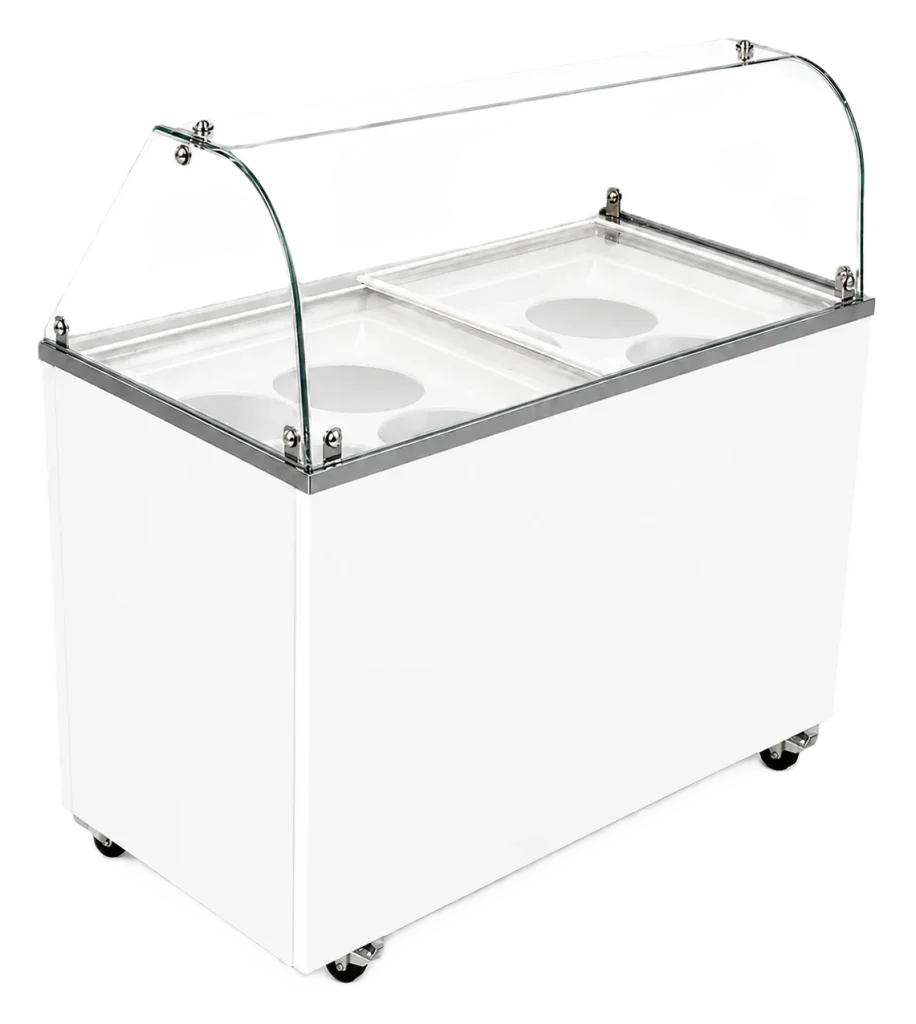

Dipping cabinet with sneeze shield and frameless glass lids, curved or straight front.
Key Features
- Sneeze shield
- Single-layer heat reflective glass lids
- Dual condensing system
- Frameless lids
- Available in curved or straight front glass
- 6-foot cord
- Environmentally friendly R-290 refrigerant
- Temperature range of -15°F to +5°F
Advantages
- Designed for dipping cabinet applications
- Four-model lineup covers 4 or 8 displayed three-gallon tubs

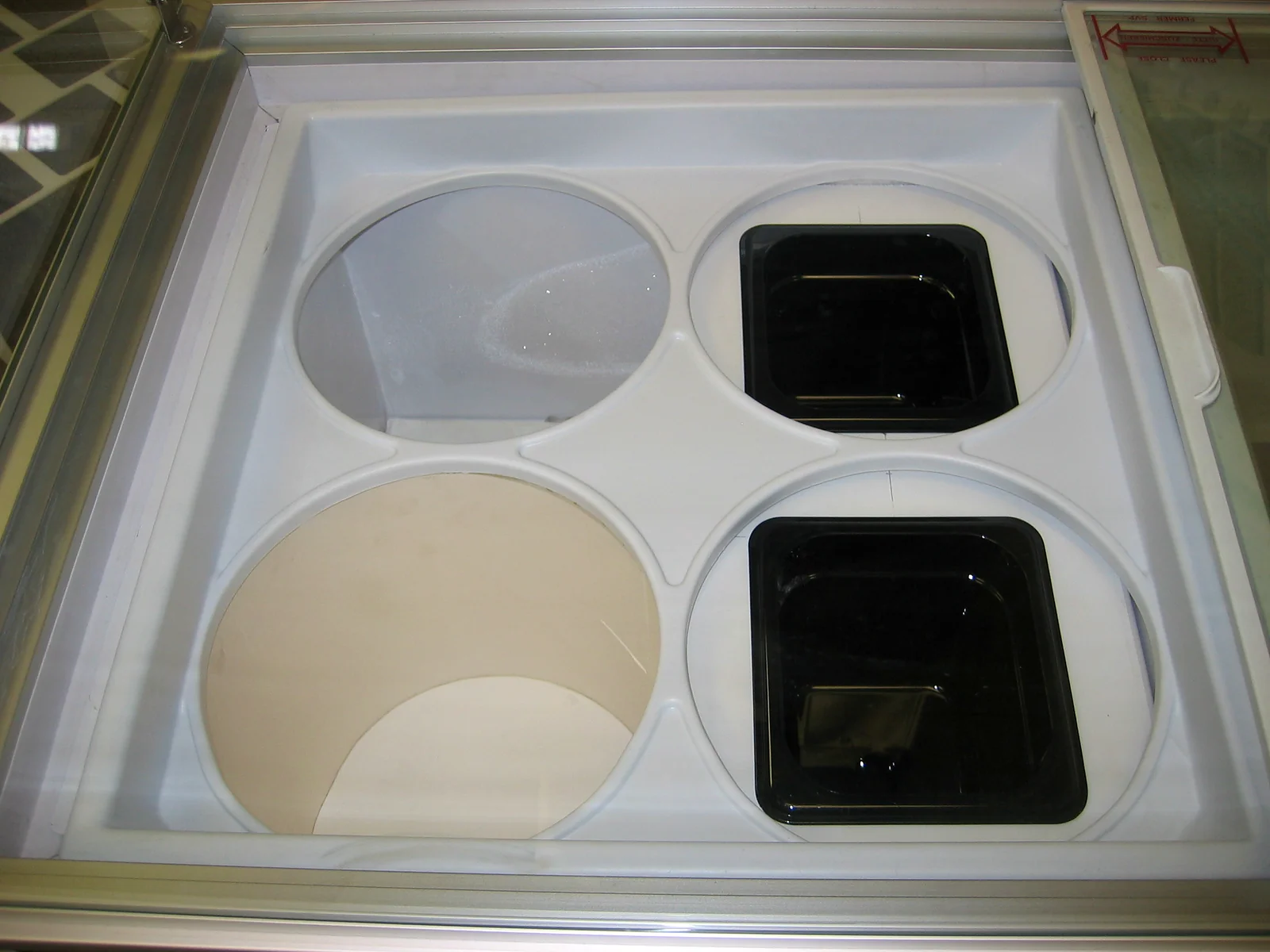

- Can holders with spill guard support clean counter use
- Sneeze shield and frameless lids improve dipping-service access
Complies with 2017 DOE standards for commercial freezer and ice cream freezer

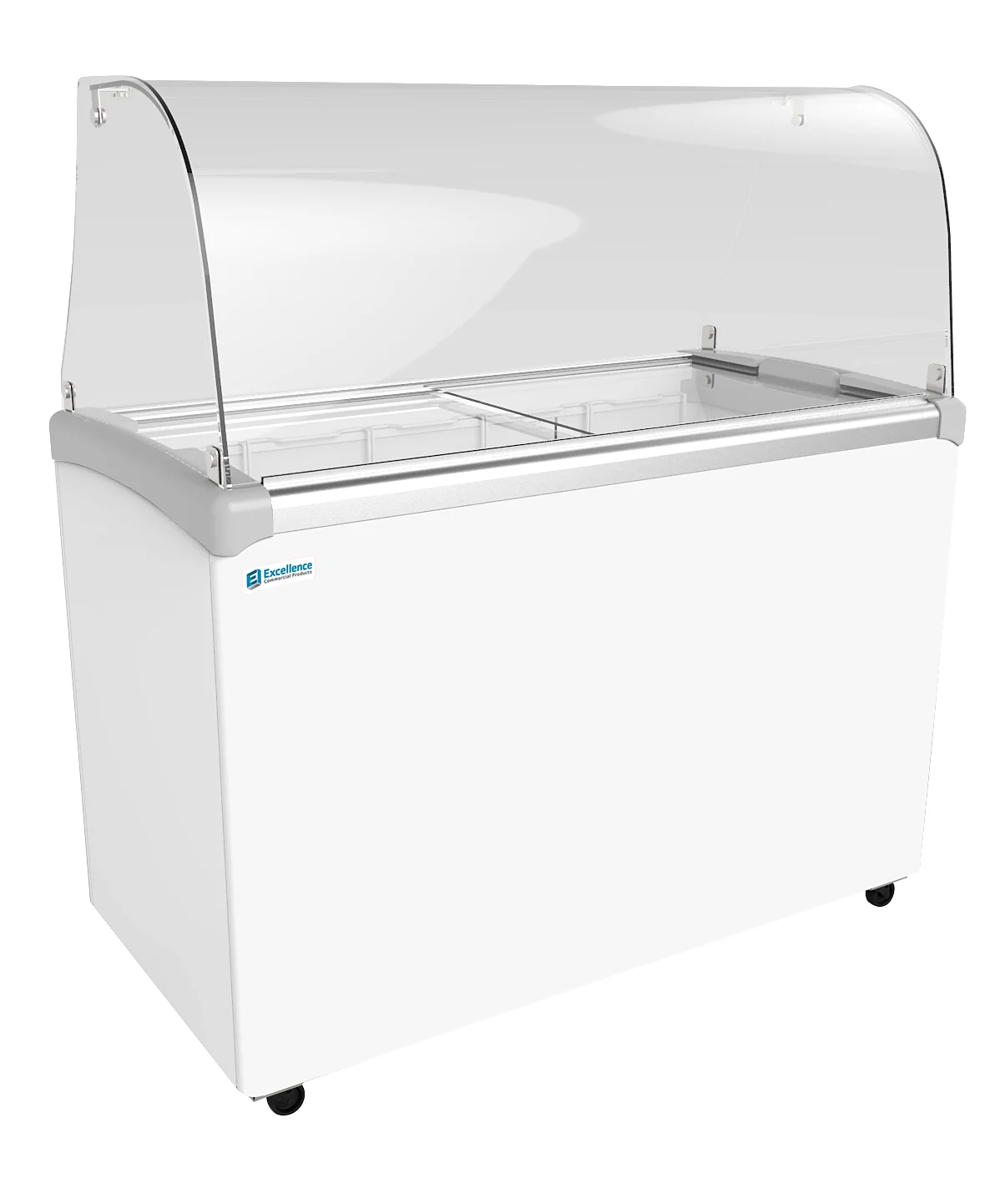

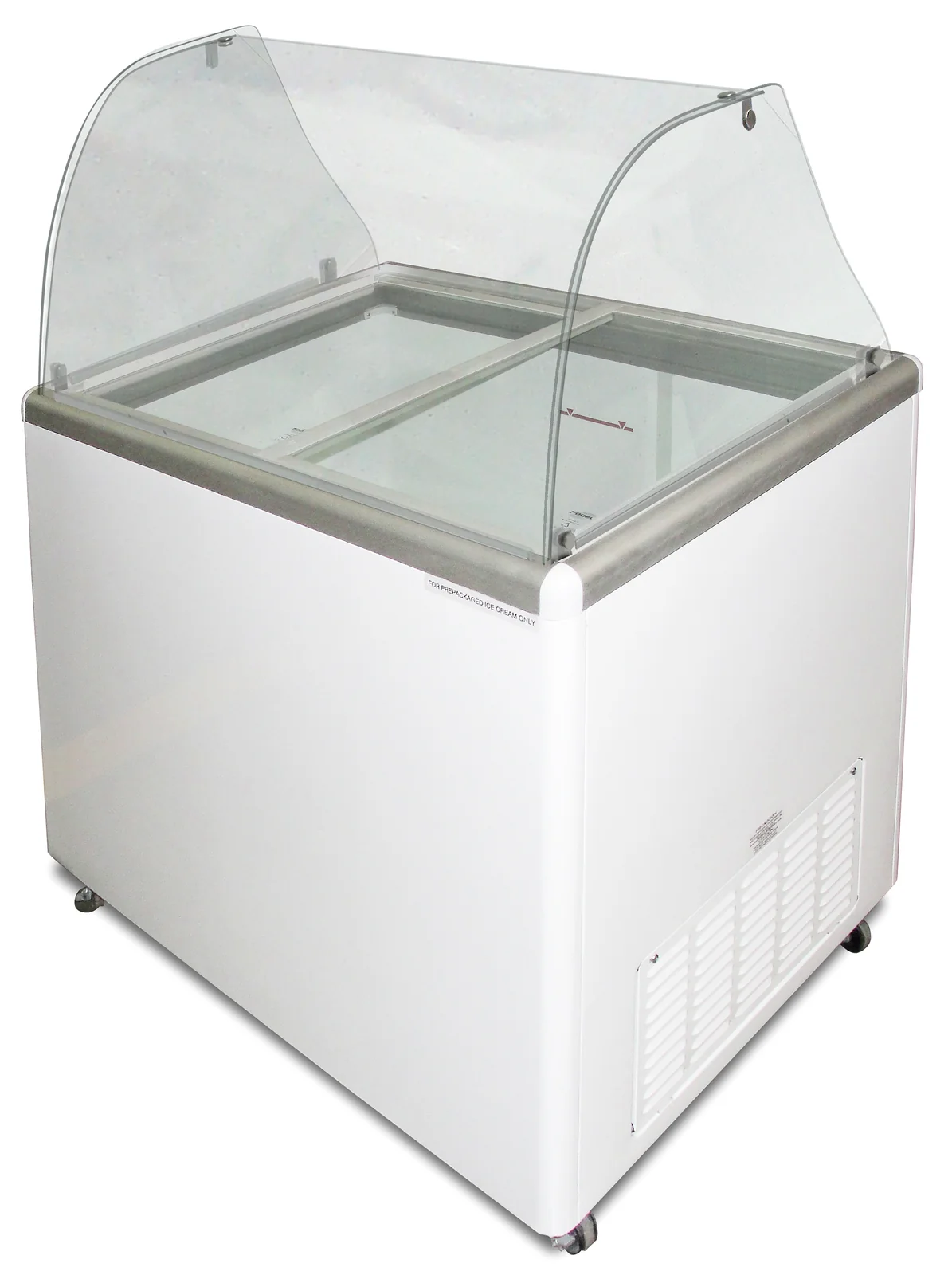

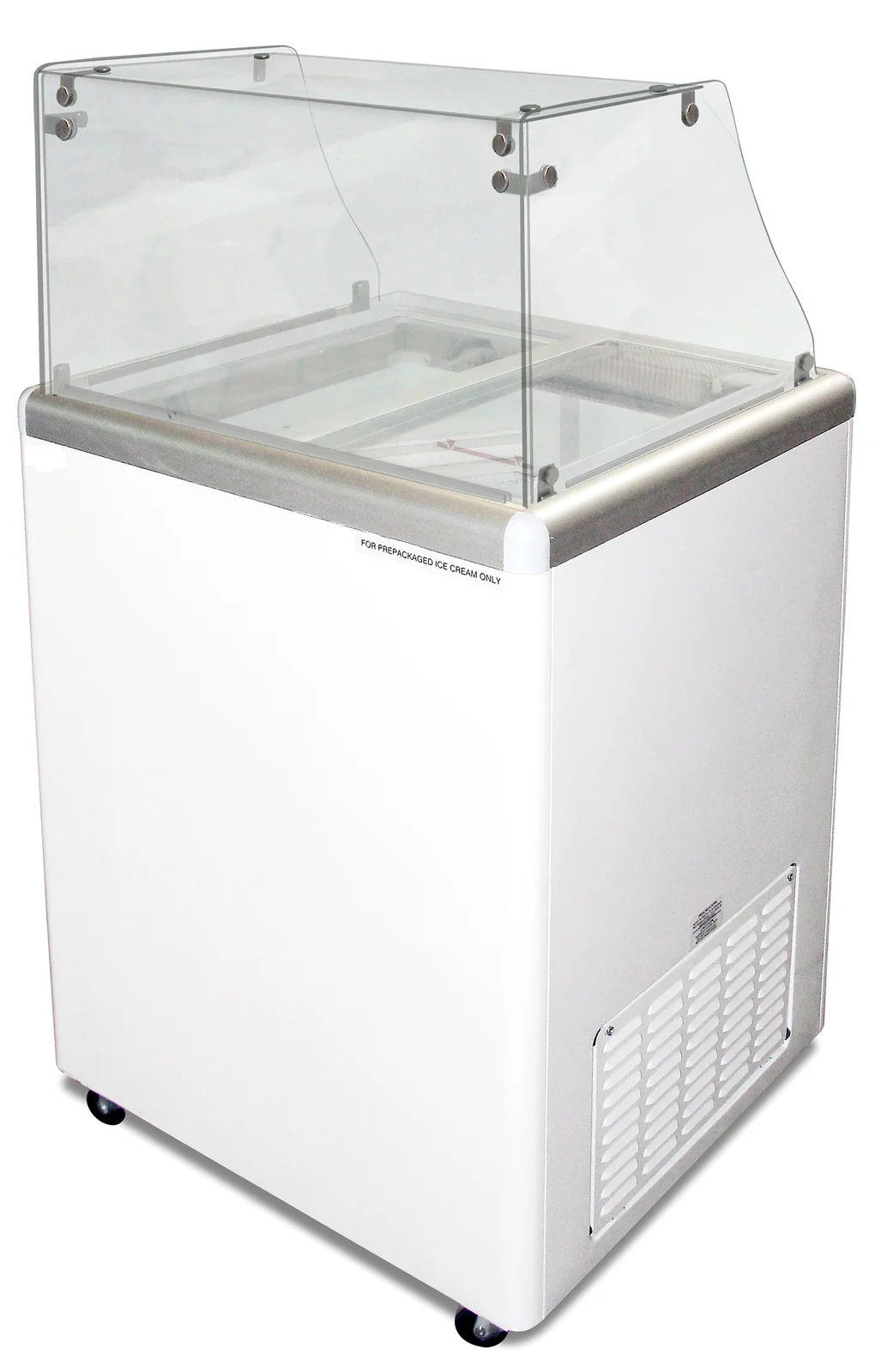

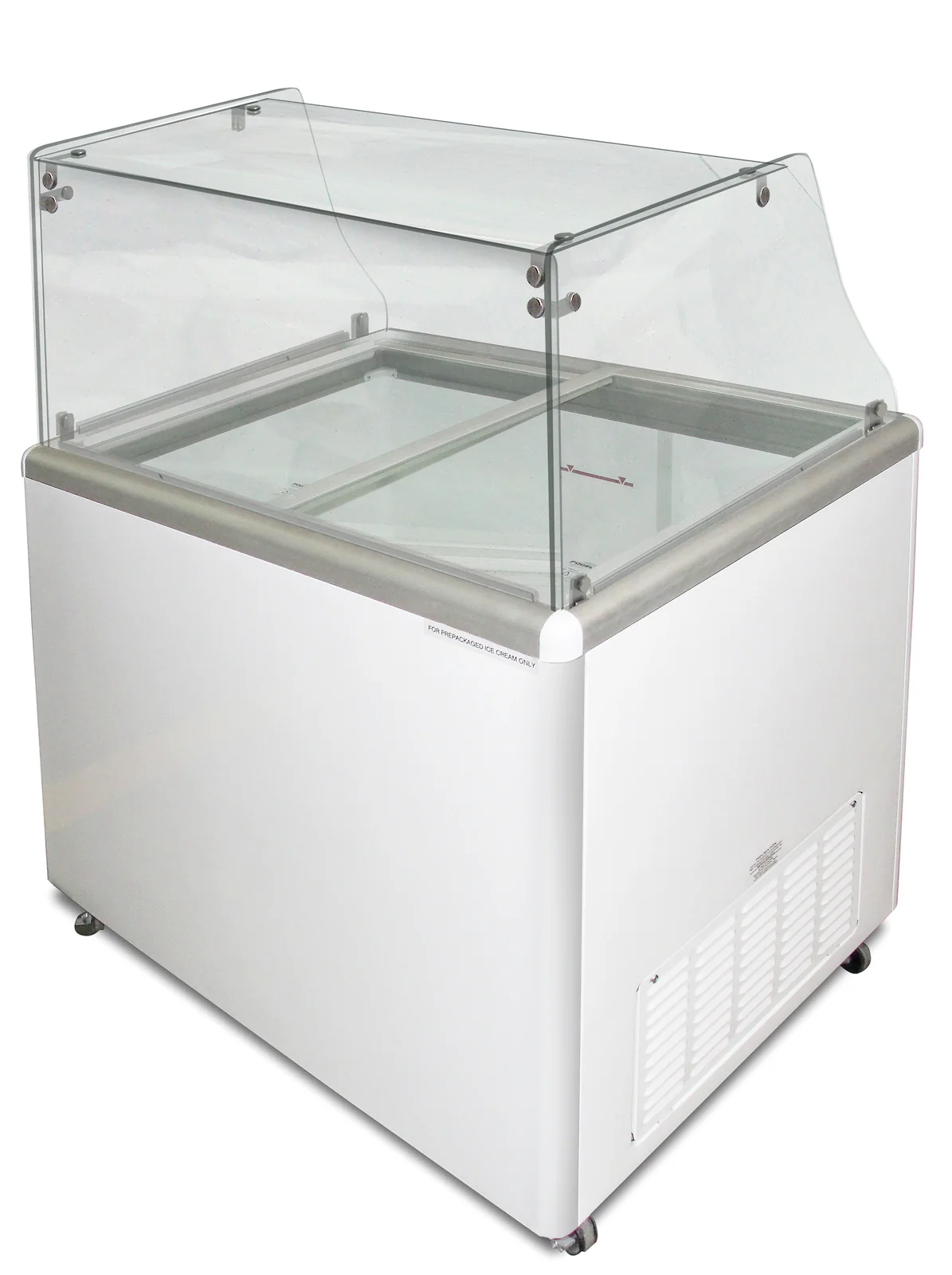

Photos
Specifications
| Model | EDC-4HC | EDC-4CHC | EDC-8HC | EDC-8CHC |
|---|---|---|---|---|
| Cubic Feet | 5.0 | 5.0 | 12.5 | 12.5 |
| Approx. Weight (Net) | 178 lb (81 kg) | 177 lb (80 kg) | 272 lb (123 kg) | 277 lb (126 kg) |
| Approx. Weight (Shipping) | 188 lb (85 kg) | 187 lb (85 kg) | 283 lb (128 kg) | 288 lb (131 kg) |
| Running Amps | 3.2 | 3.2 | 4.3 | 4.3 |
| Compressor HP | 1/5 | 1/5 | 1/4 | 1/4 |
| 3-Gal. Tubs Displayed | 4 | 4 | 8 | 8 |
| Container Quantity | 140 | 110 | 72 | 60 |
Electrical: NEMA 5-15P · 115 / 60 / 1
Available Options

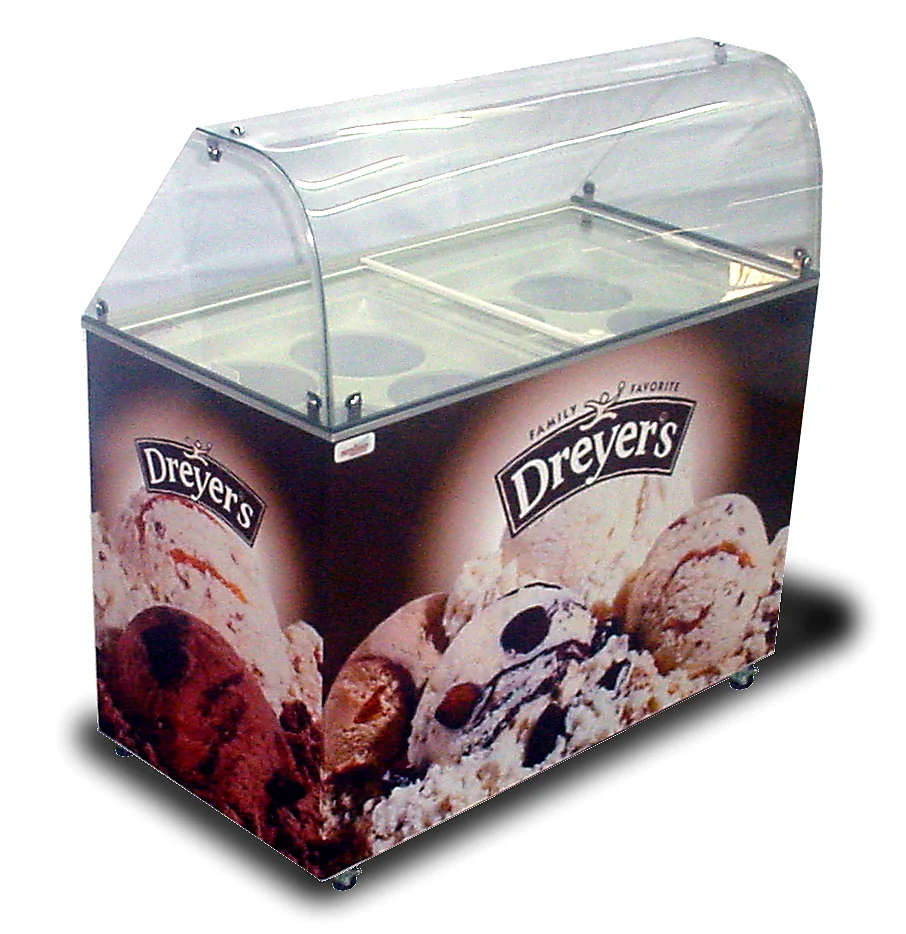

- Graphics
- Dipper well
- Night covers
- Locking device

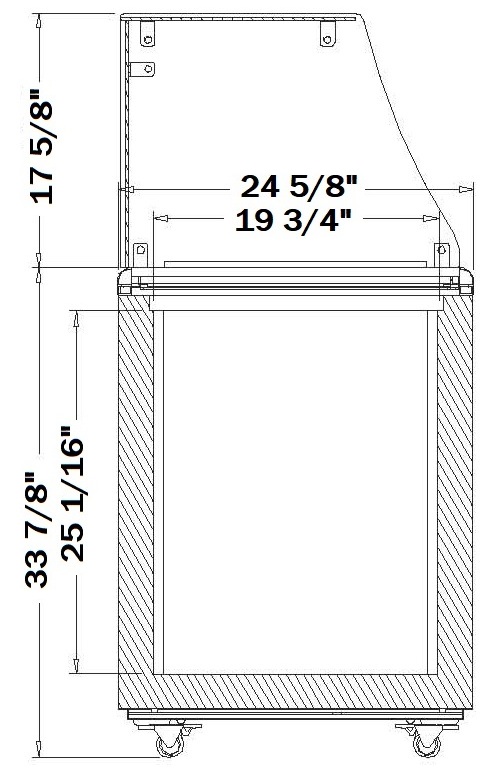

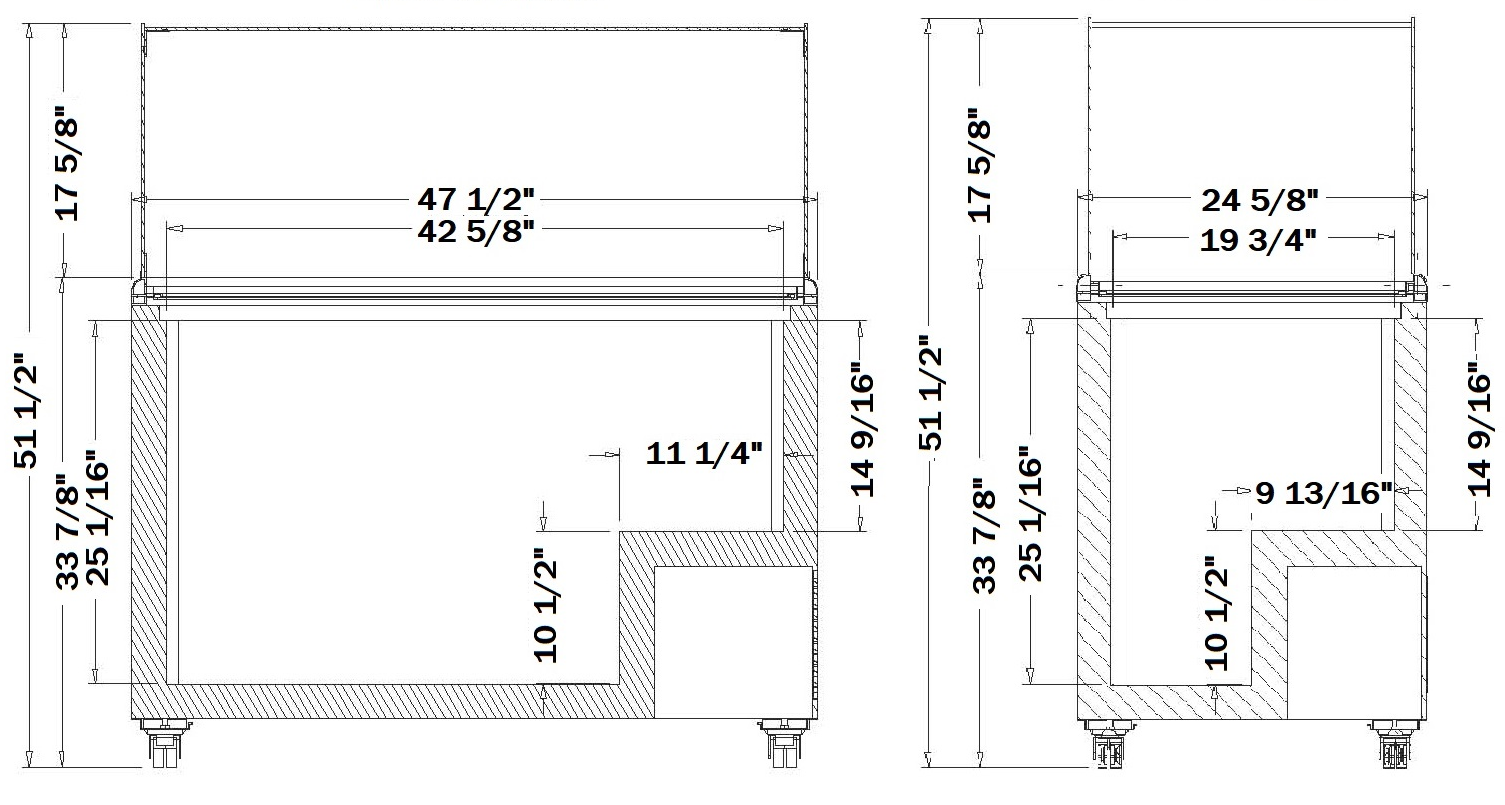

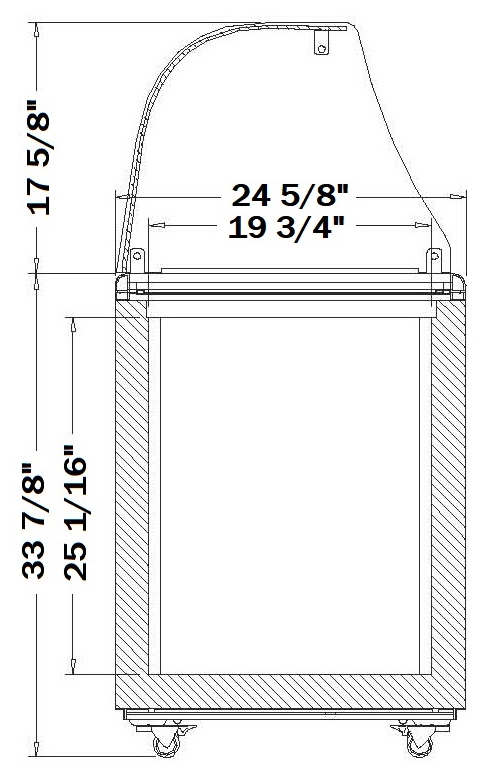

Dimensions
