Flat lid freezer in five sizes from 5.0 to 15.5 cubic feet, with glass lids and a -15°F to +5°F temperature range.
Key Features
- Five popular sizes
- Single-layer heat reflective glass lids
- Painted steel interior
- Casters standard, 2 locking
- 6-foot cord
- Environmentally friendly R-290 refrigerant
- Temperature range of -15°F to +5°F
Advantages
- Designed for flat lid freezer applications
- Glass lids support product visibility and quick access
- Painted steel interior discuss daily frozen product merchandising
Complies with 2017 DOE standards for commercial freezer and ice cream freezer
Photos
Specifications
| Model | EURO-5HC | EURO-8HC | EURO-10HC | EURO-13HC | EURO-16HC |
|---|---|---|---|---|---|
| Cubic Feet | 5.0 | 7.5 | 9.6 | 12.5 | 15.5 |
| Approx. Weight (Net) | 110 lb (50 kg) | 121 lb (55 kg) | 136 lb (62 kg) | 163 lb (74 kg) | 183 lb (83 kg) |
| Approx. Weight (Shipping) | 120 lb (54 kg) | 140 lb (64 kg) | 157 lb (71 kg) | 174 lb (79 kg) | 197 lb (89 kg) |
| Running Amps | 1.2 | 1.2 | 1.4 | 1.3 | 1.5 |
| Compressor HP | 1/5 | 1/5 | 1/4 | 1/4 | 1/4 |
| 3-Gal. Cans Capacity | 4/2 | 4/2 | 6/4 | 8/6 | 10/8 |
| Optional Baskets | 2 | 3 | 4 | 5 | 6 |
| Container Quantity | 153 | 129 | 102 | 84 | 72 |
Electrical: NEMA 5-15P · 115 / 60 / 1
Available Options
- 3 section hanging baskets
- Lid lock
- 3 gallon can holder kit; holds 4 tubs

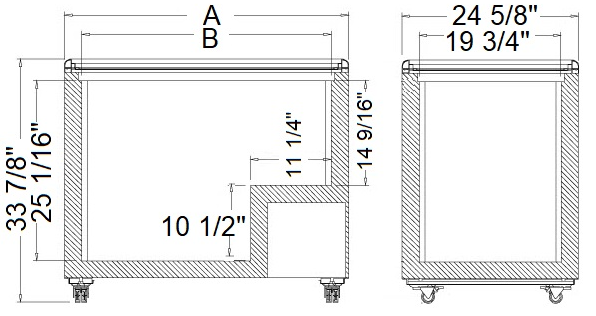

Dimensions
| Model | A | B |
|---|---|---|
| EURO-5HC | 24 5/8" | 19 3/4" |
| EURO-8HC | 33 3/8" | 28 1/2" |
| EURO-10HC | 39 5/8" | 34 3/4" |
| EURO-13HC | 47 1/2" | 42 5/8" |
| EURO-16HC | 59 3/8" | 54 1/2" |
