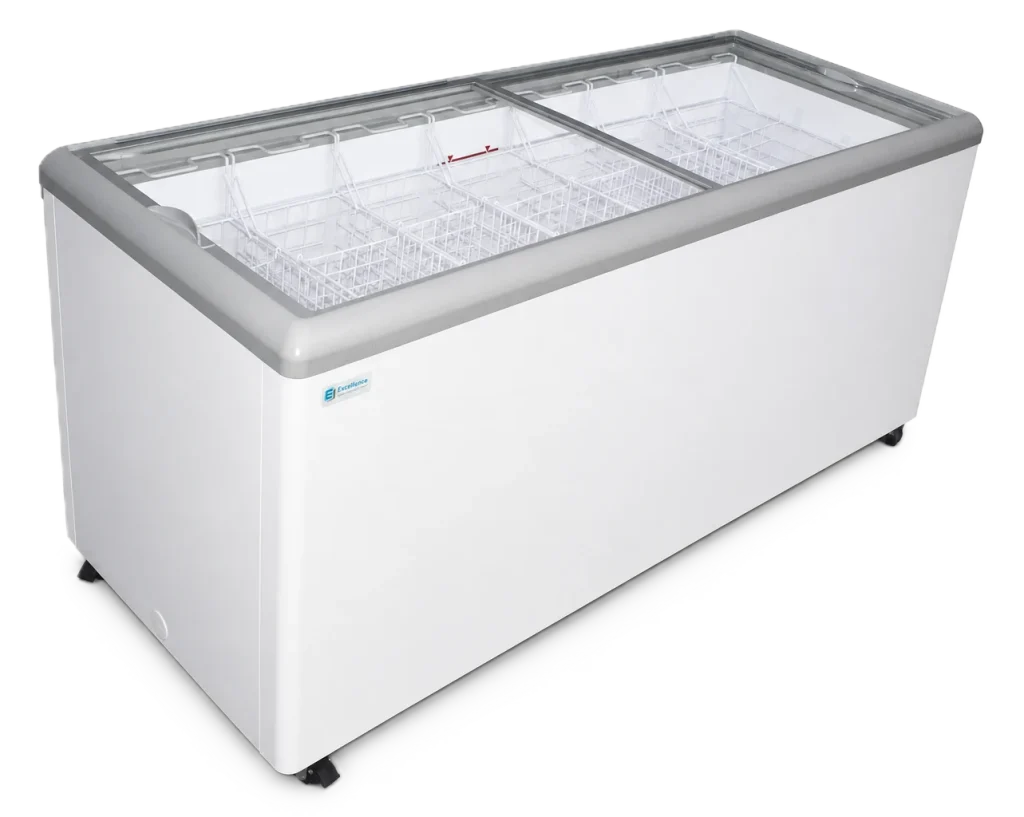

Dual temp cooler and freezer in six sizes from 6.4 to 20.0 cubic feet, with heat reflective lids and a -5°F to +40°F range.
Key Features
- Wide range thermostat
- LED interior lighting
- Casters with 2 locking
- Painted steel interior
- Single layer heat reflective lids
- 12.75-foot cord / 9.75-foot accessible cord
- Environmentally friendly R-290 refrigerant
- Temperature range of -5°F to +40°F
Advantages
- Designed for dual temp cooler and freezer applications
- Optional baskets support organized merchandising
- Cold wall system supports consistent holding performance
- Free standing cabinet with casters simplifies placement
Complies with 2017 DOE standards for commercial cooler and freezer

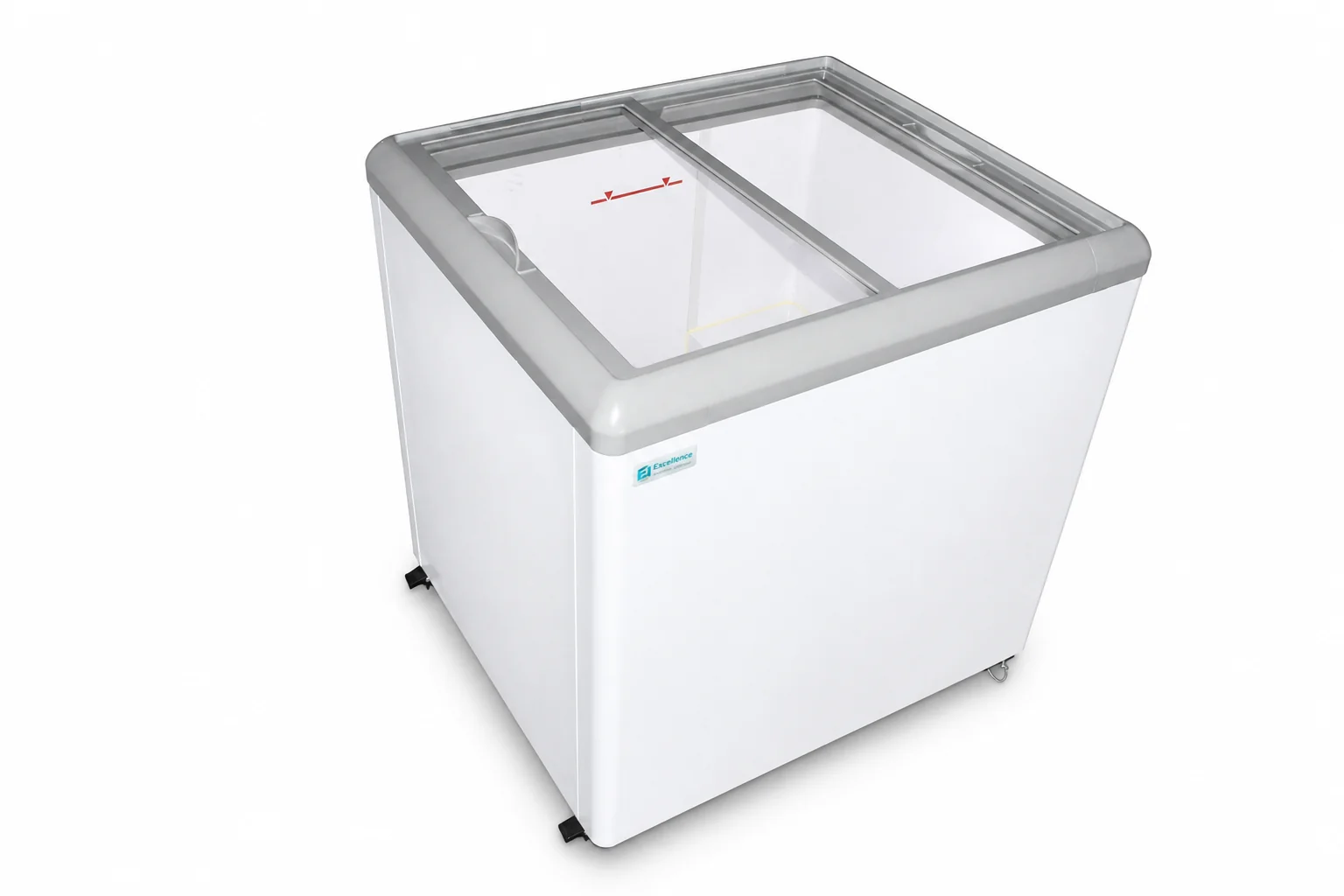

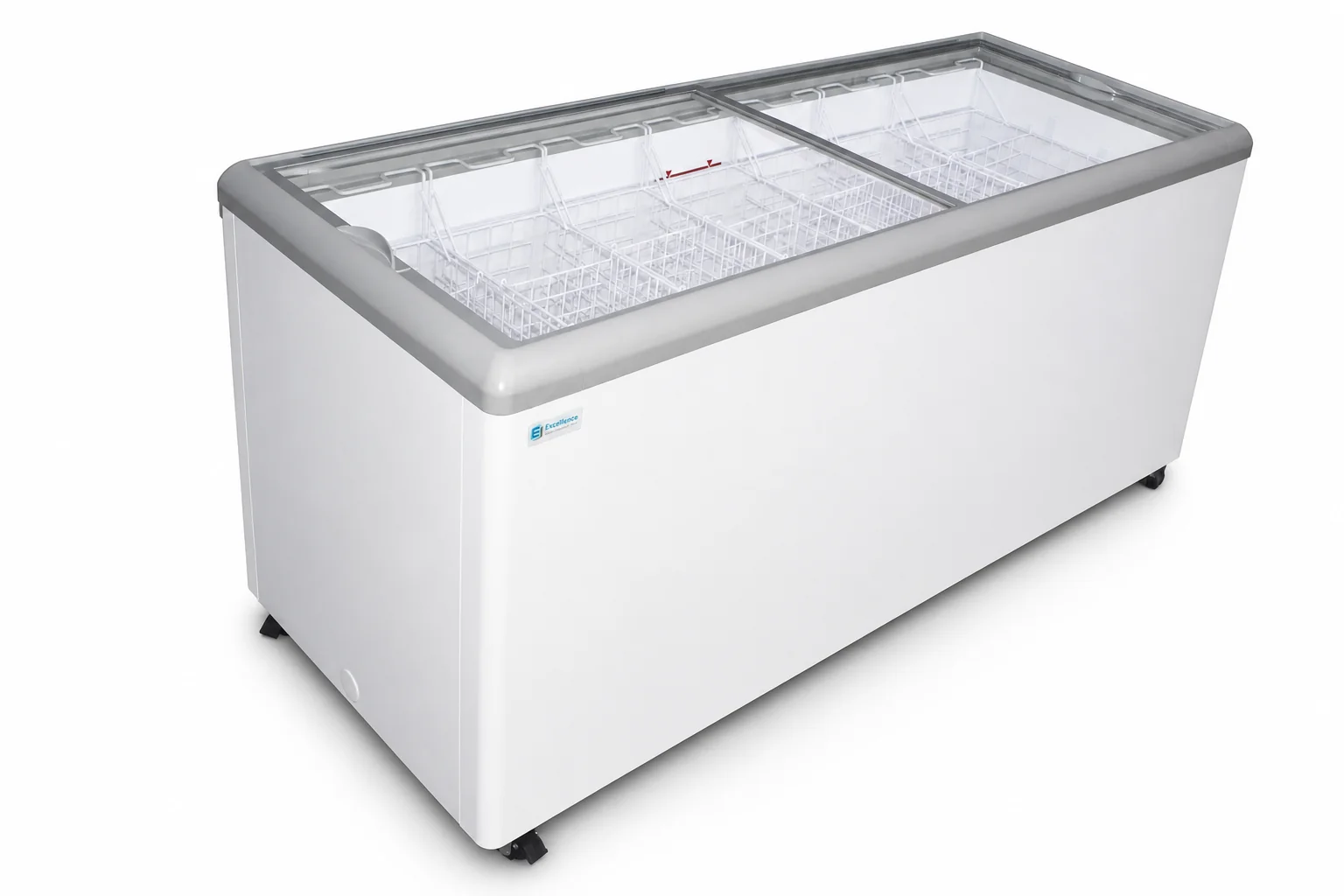

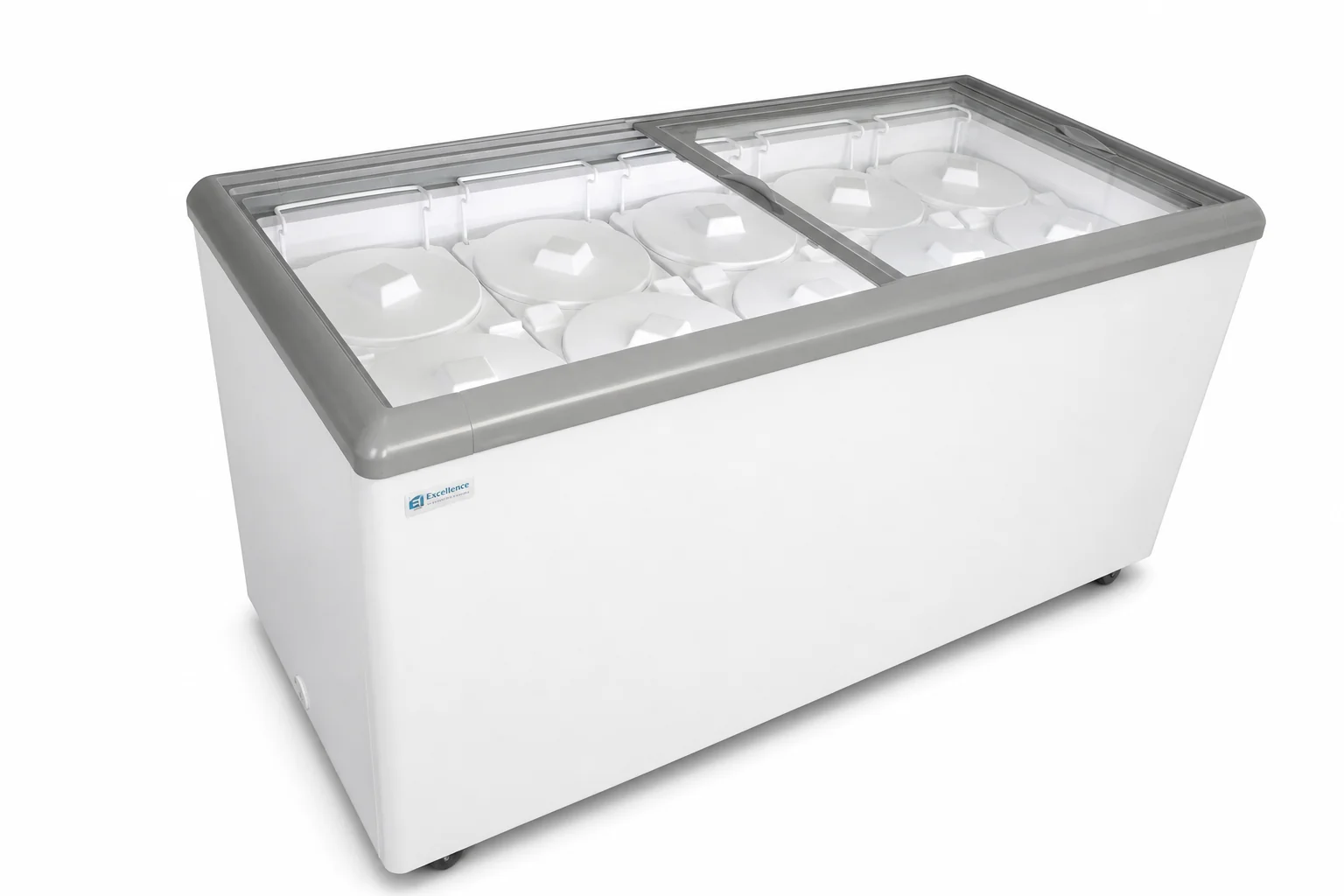

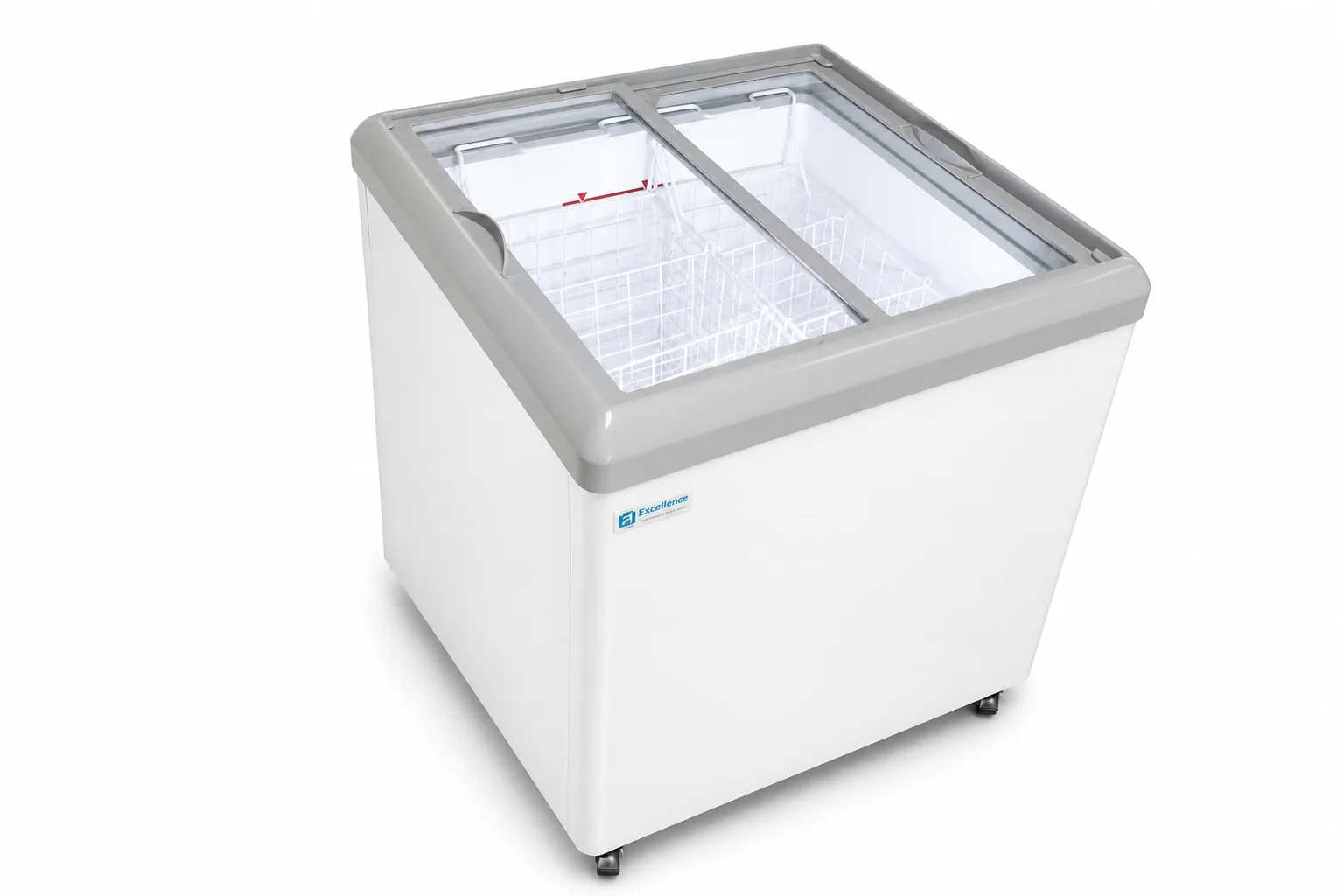

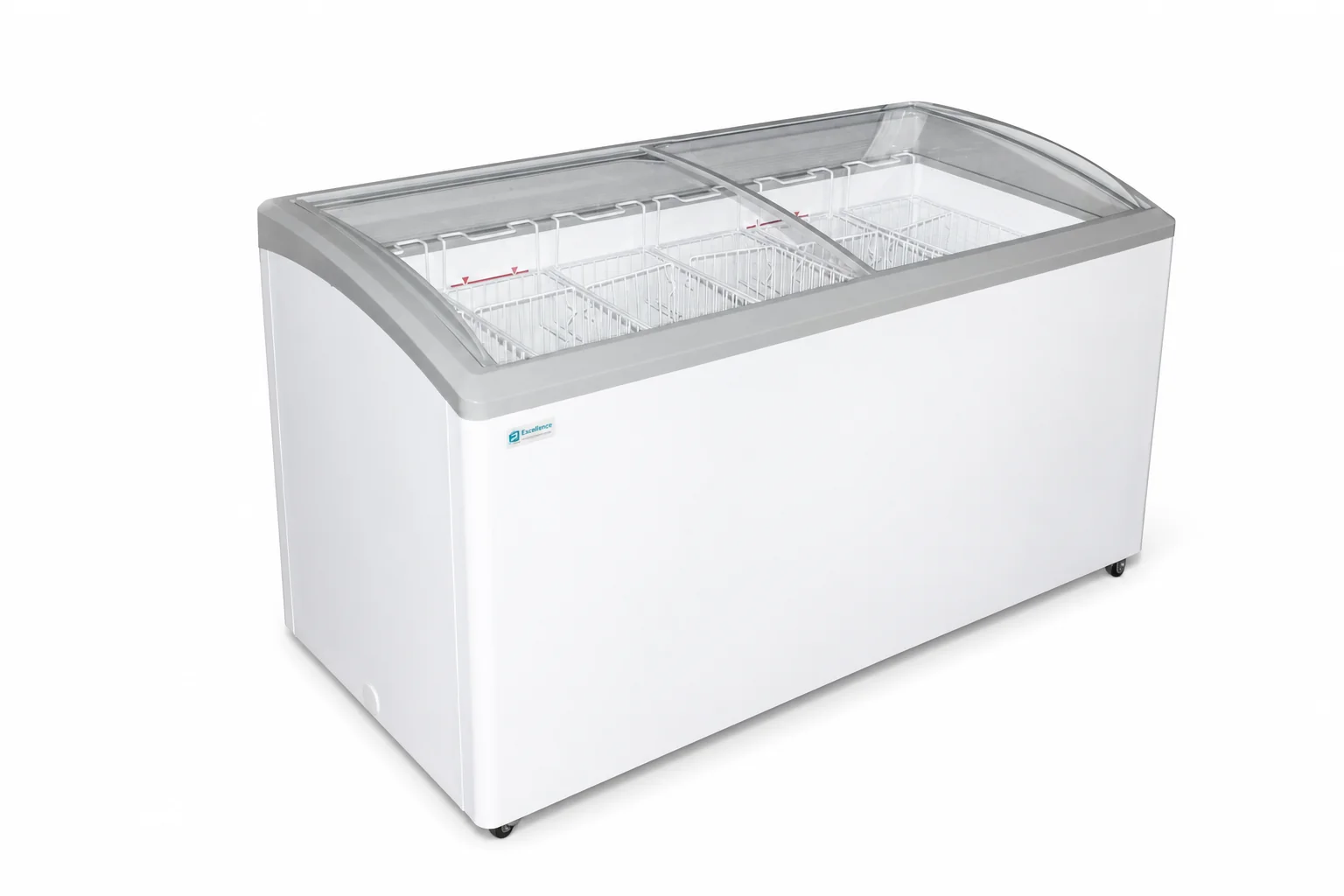

Photos
Specifications
| Model | HB-6HCD | HB-7HCD | HB-11HCD | HB-14HCD | HB-17HCD | HB-20HCD |
|---|---|---|---|---|---|---|
| Cubic Feet | 6.4 | 7.4 | 11.1 | 13.8 | 16.5 | 20.0 |
| Approx. Weight (Net) | 108 lb (49 kg) | 117 lb (53 kg) | 145 lb (66 kg) | 166 lb (75 kg) | 181 lb (82 kg) | 213 lb (97 kg) |
| Approx. Weight (Shipping) | 122 lb (55 kg) | 130 lb (59 kg) | 164 lb (74 kg) | 187 lb (85 kg) | 201 lb (91 kg) | 238 lb (108 kg) |
| Running Amps | 1.3 | 1.3 | 1.4 | 2.0 | 2.0 | 4.1 |
| Compressor HP | 1/7 | 1/7 | 1/5 | 1/4 | 1/4 | 1/2 |
| Optional Baskets | 2 | 3 | 4 | 5 | 6 | 7 |
| Container Quantity | 135 | 117 | 90 | 75 | 66 | 56 |
Electrical: NEMA 5-15P · 115 / 60 / 1
Available Options
- Graphics
- Lock and key
- Dipper well
- Hanging baskets and dividers
- Gelato pans and holders
- Sneeze shield
- False bottoms

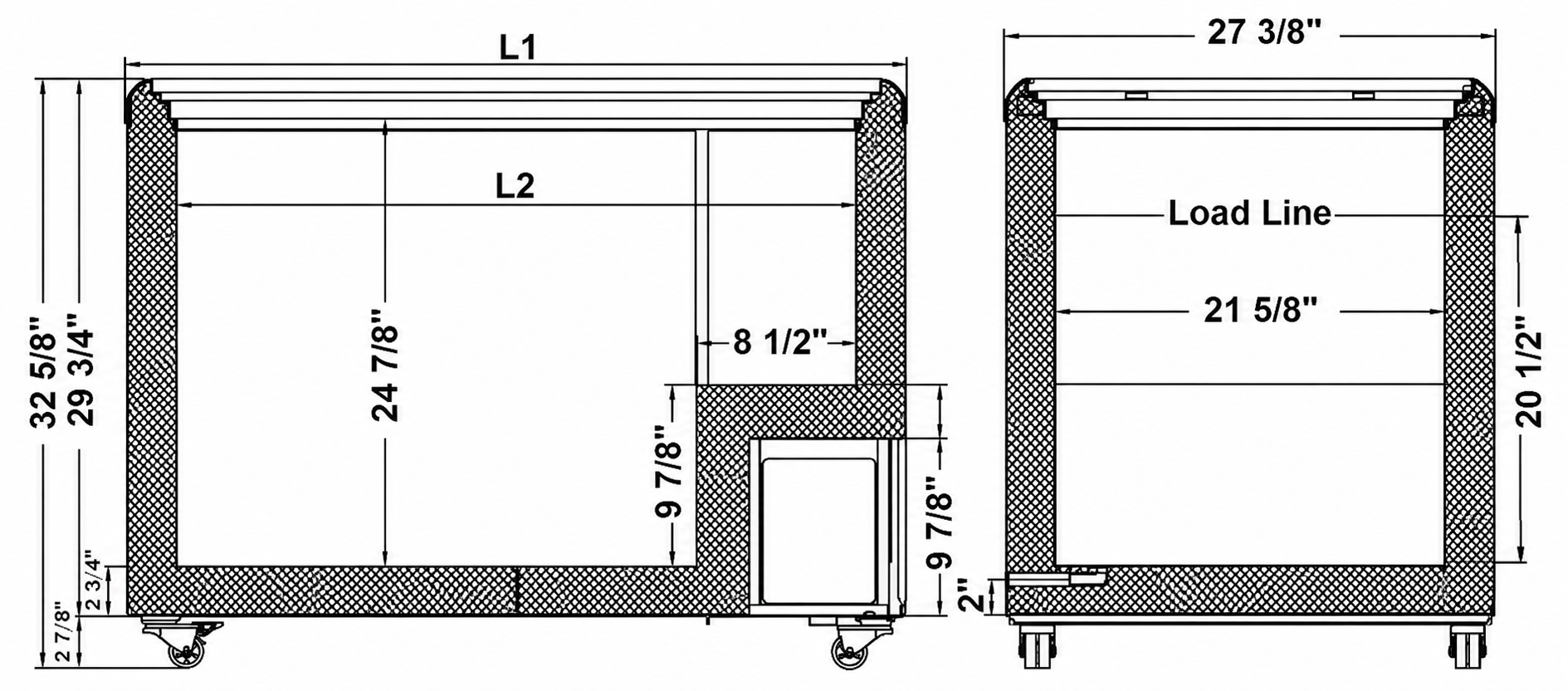

Dimensions
| Model | L1 | L2 |
|---|---|---|
| HB-6HCD | 28 1/2" | 22 7/8" |
| HB-7HCD | 31 1/2" | 25 7/8" |
| HB-11HCD | 43 1/2" | 37 7/8" |
| HB-14HCD | 51 3/4" | 46 1/8" |
| HB-17HCD | 59 1/2" | 53 3/4" |
| HB-20HCD | 70 5/8" | 65 1/8" |
