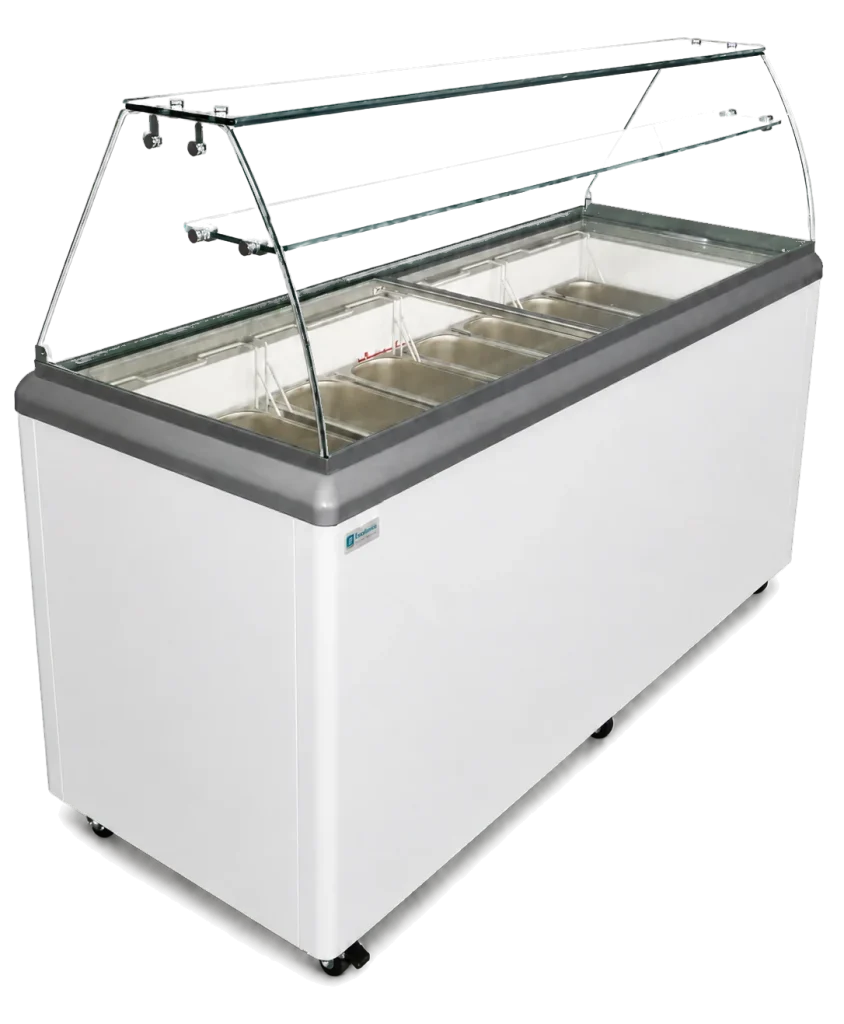

Gelato scooping cabinet in five sizes displaying 4 to 12 five-liter gelato pans, with mezzanine shelf and cold wall evaporator.
Key Features
- Single layer heat reflective lids
- LED interior lighting
- Cold wall evaporator
- Mezzanine shelf
- 5-liter gelato pans and holder
- 12.75-foot cord / 9.75-foot accessible cord
- Environmentally friendly R-290 refrigerant
- Temperature range of -5°F to +40°F
Advantages
- Designed for gelato scooping cabinet applications
- Standard stainless steel pans support gelato merchandising
- Cold wall system supports consistent product temperatures
Complies with 2017 DOE standards for commercial service over counter freezer and service over counter ice cream freezer

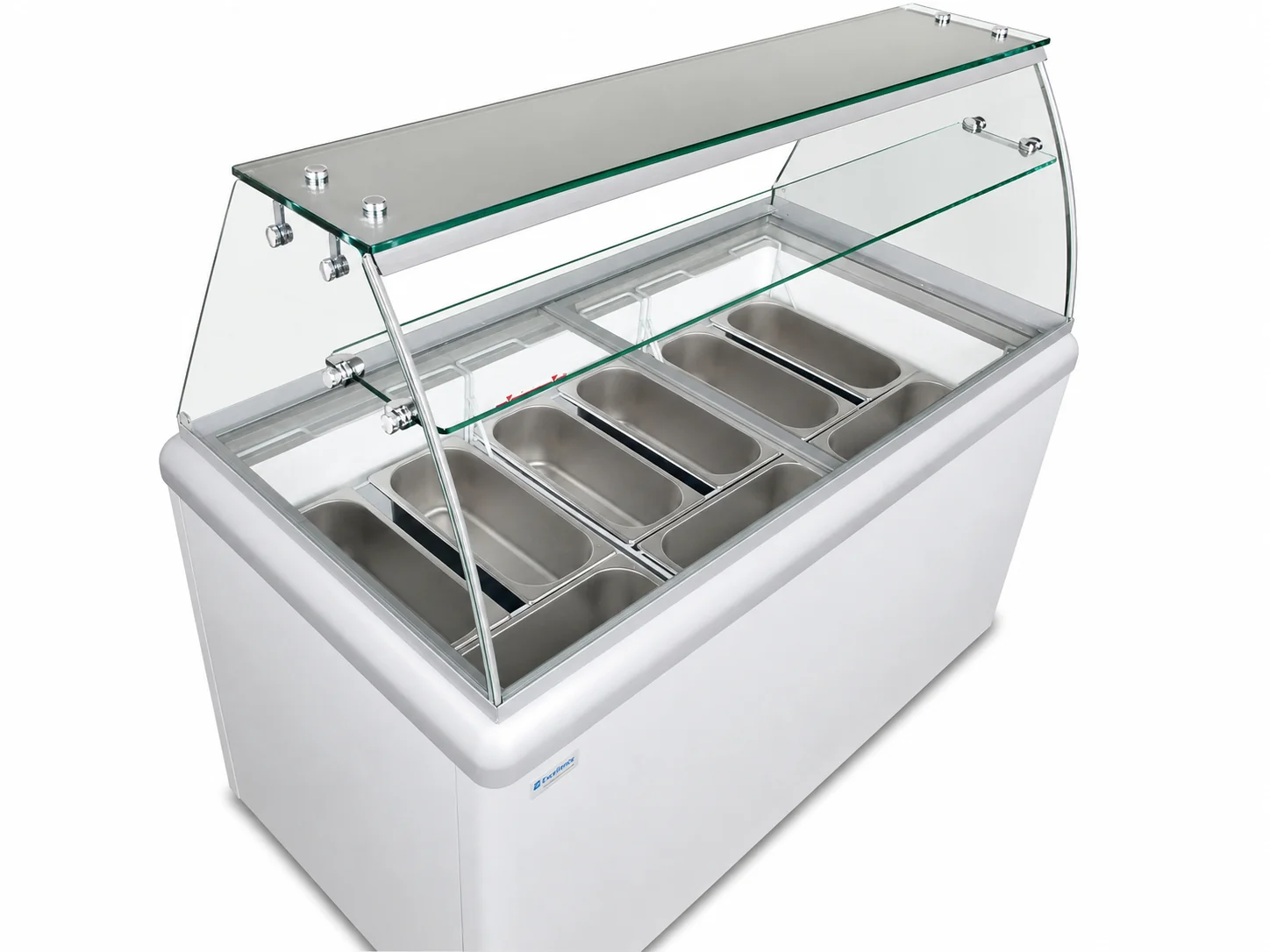

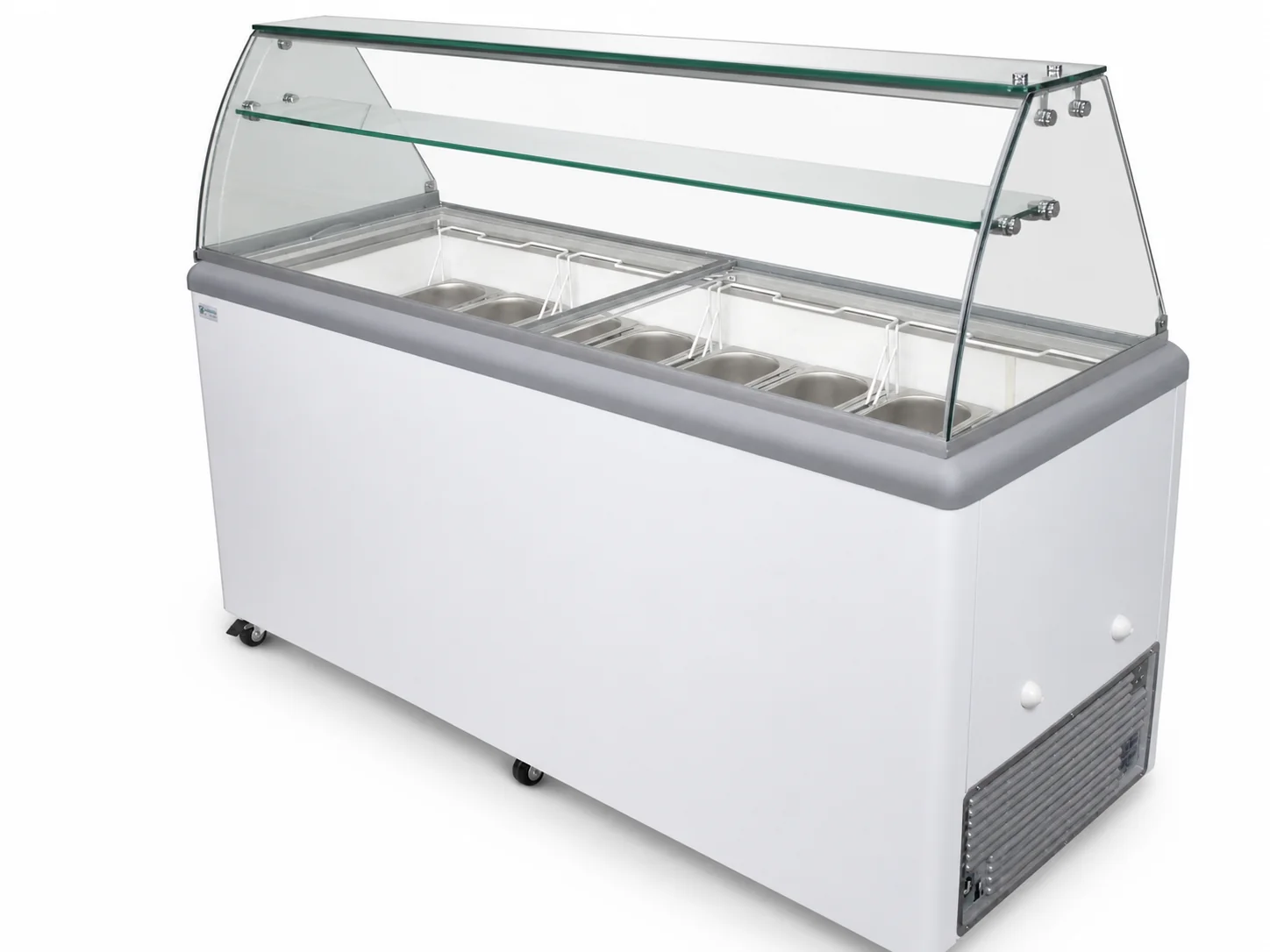

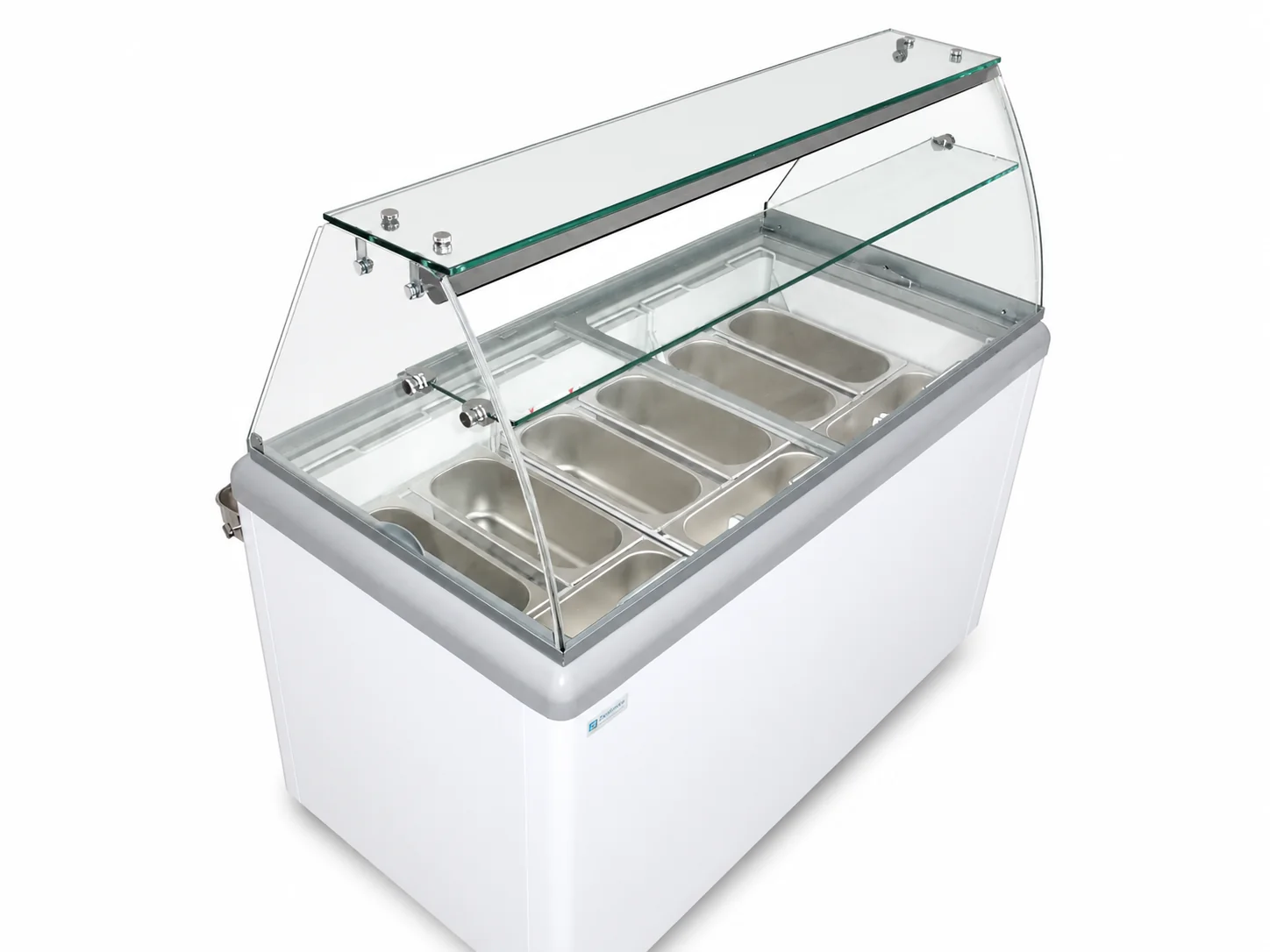

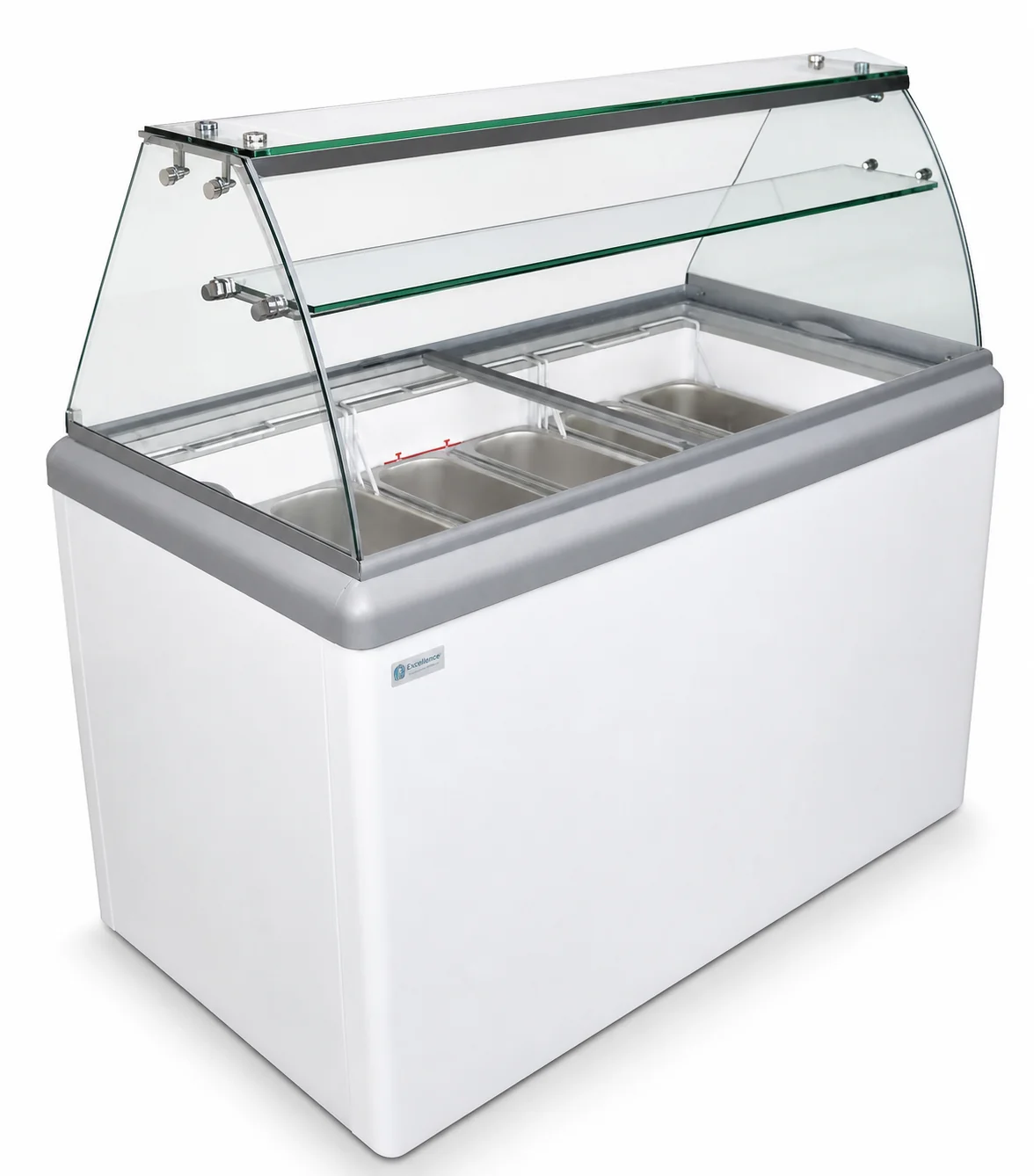

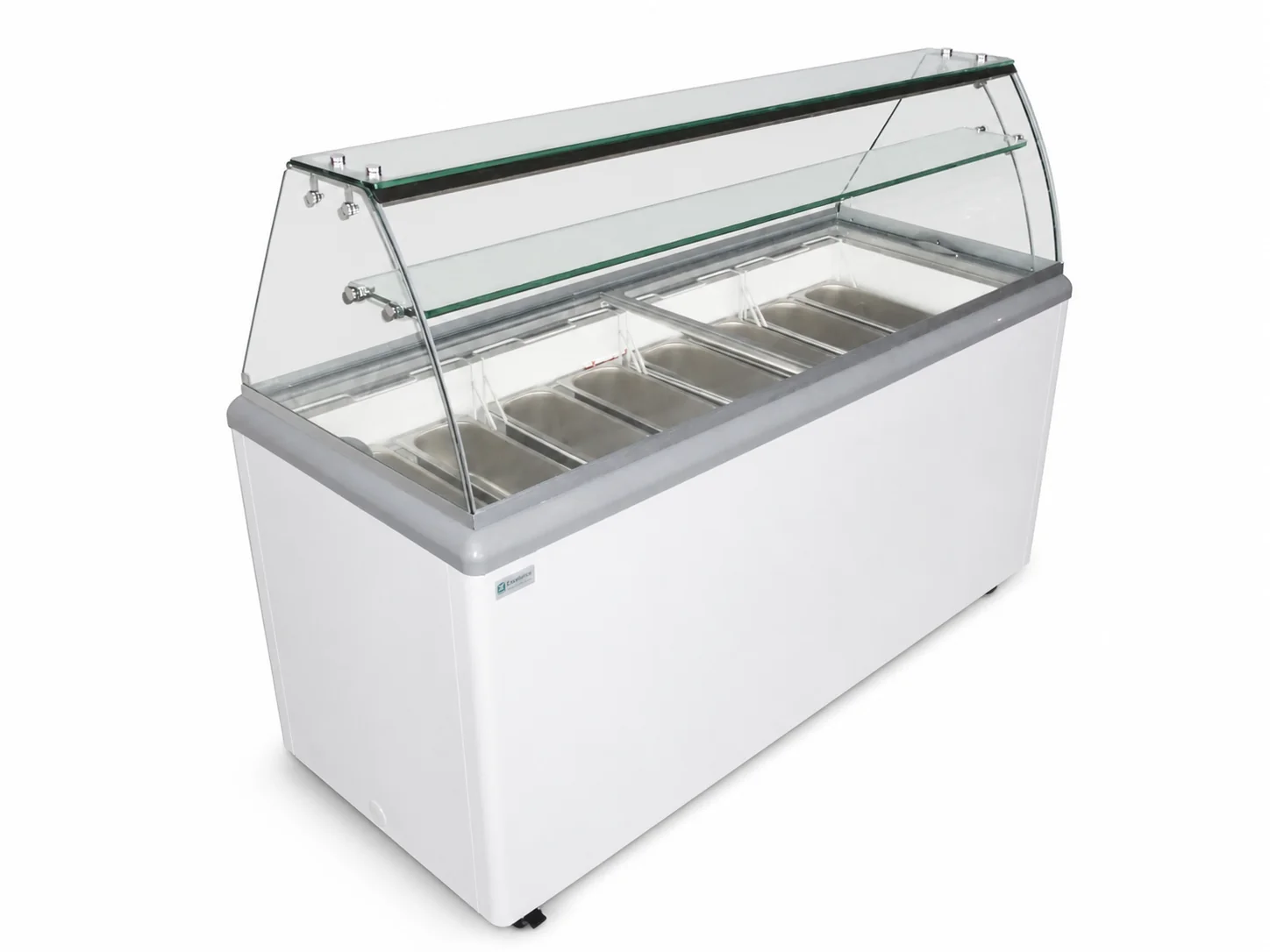

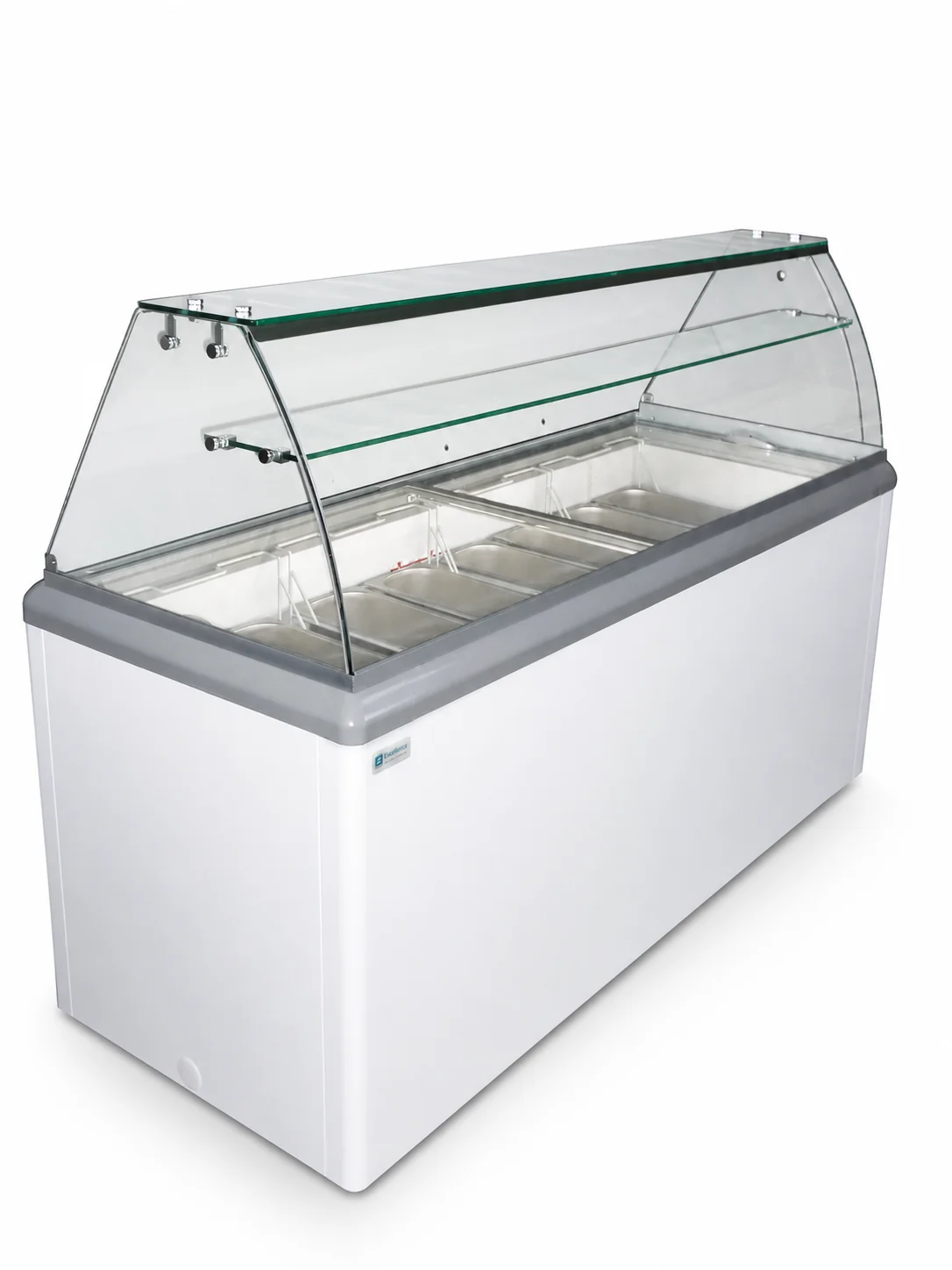

Photos
Specifications
| Model | HBG-4HC | HBG-7HC | HBG-9HC | HBG-10HC | HBG-12HC |
|---|---|---|---|---|---|
| Cubic Feet | 6.4 | 11.1 | 13.8 | 16.5 | 20.0 |
| Approx. Weight (Net) | 164 lb (74 kg) | 218 lb (99 kg) | 268 lb (122 kg) | 298 lb (135 kg) | 346 lb (157 kg) |
| Approx. Weight (Shipping) | 193 lb (88 kg) | 262 lb (119 kg) | 305 lb (138 kg) | 334 lb (151 kg) | 394 lb (179 kg) |
| Running Amps | 1.3 | 1.4 | 2.0 | 2.0 | 4.1 |
| Compressor HP | 1/7 | 1/5 | 1/4 | 1/4 | 1/2 |

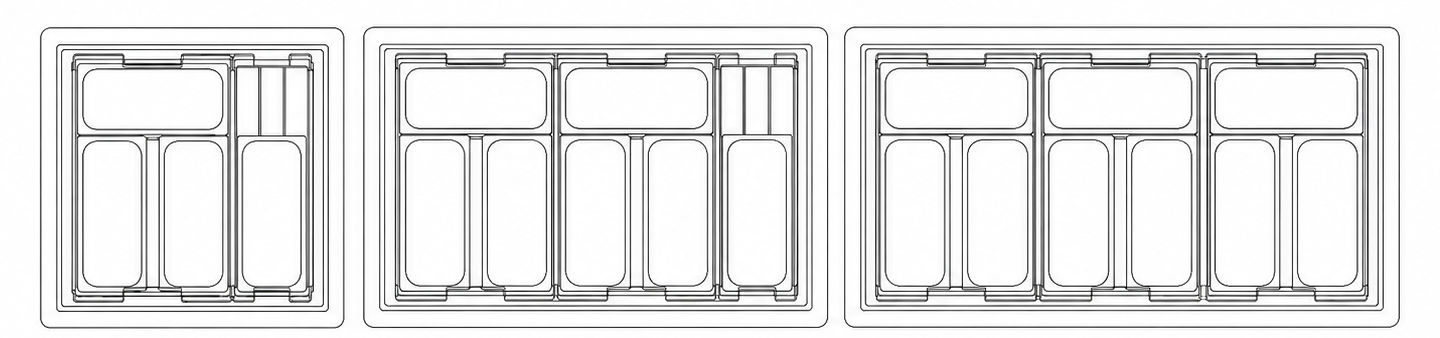

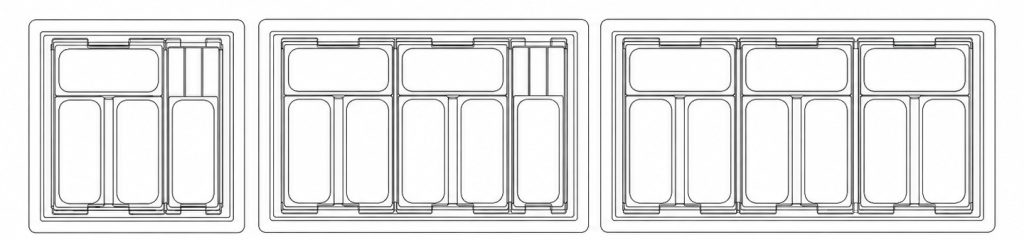

| Gelato Pans Displayed | 4 | 7 | 9 | 10 | 12 |
| Container Quantity | 99 | 67 | 56 | 49 | 42 |
Electrical: NEMA 5-15P · 115 / 60 / 1
Available Options
- Lock and key
- Dipper well
- Graphics

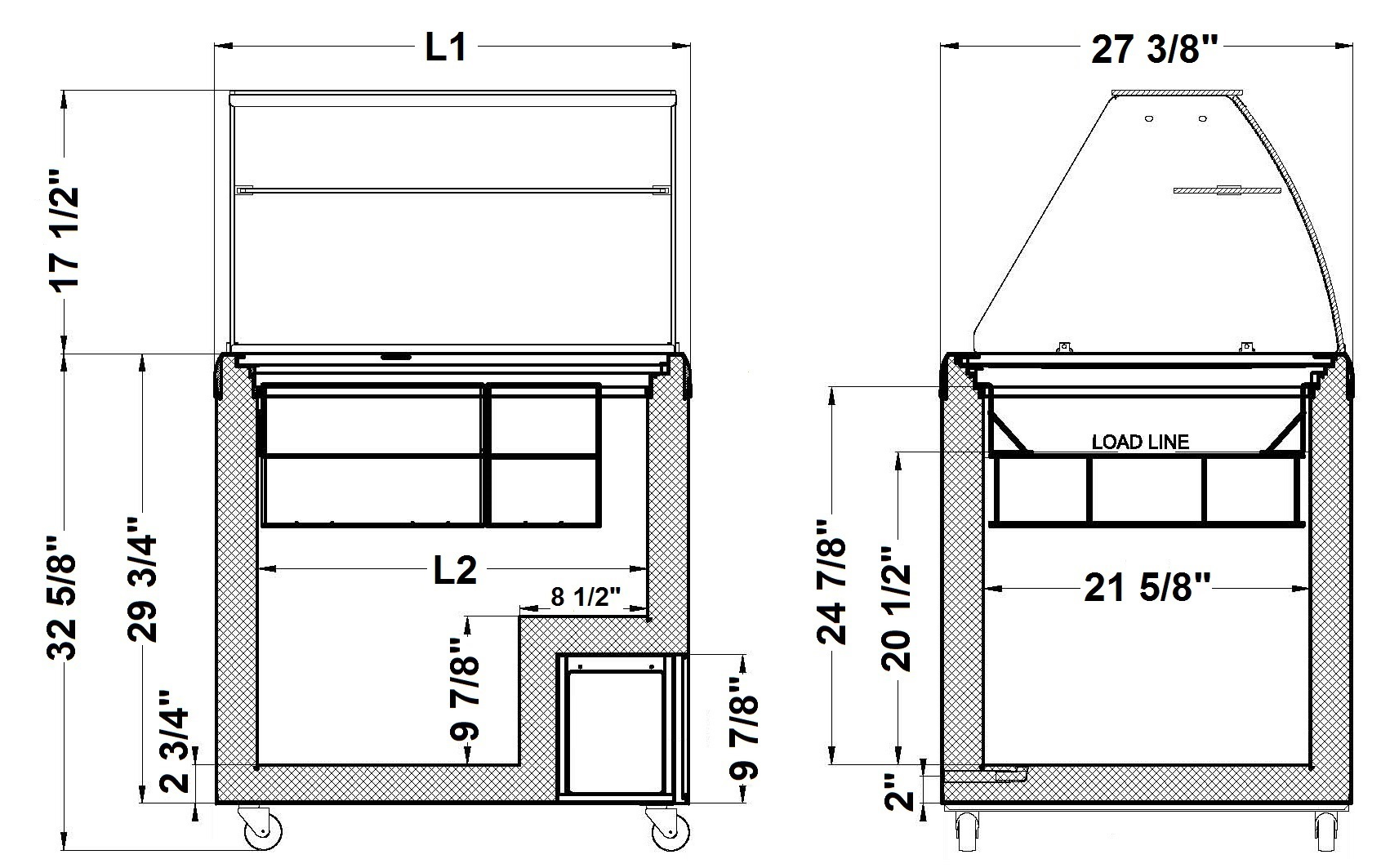

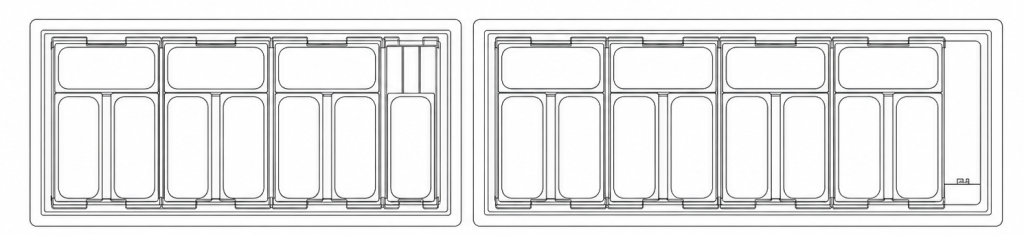

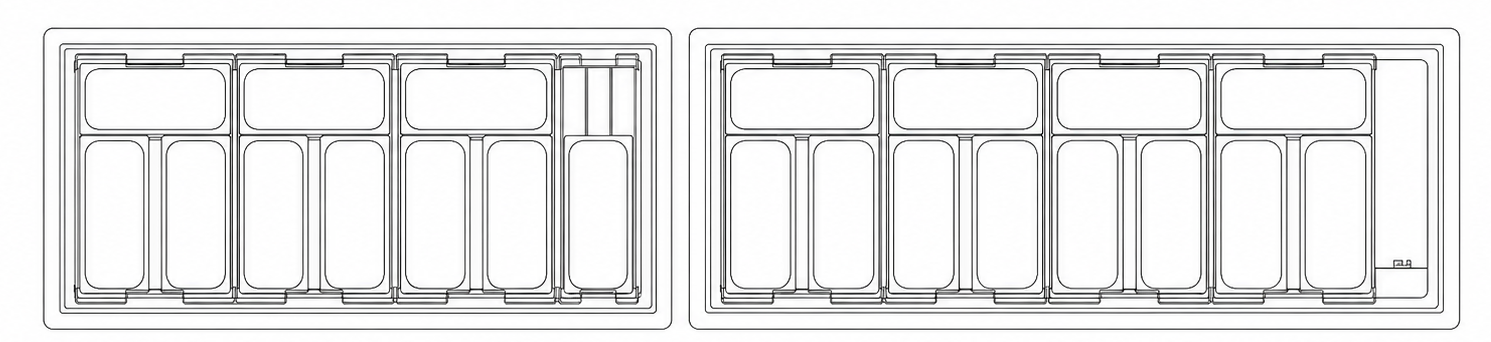

Dimensions
| Model | L1 | L2 |
|---|---|---|
| HBG-4HC | 28 1/2" | 22 7/8" |
| HBG-7HC | 43 1/2" | 37 7/8" |
| HBG-9HC | 51 3/4" | 46 1/8" |
| HBG-10HC | 59 1/2" | 53 7/8" |
| HBG-12HC | 70 5/8" | 65 1/8" |
