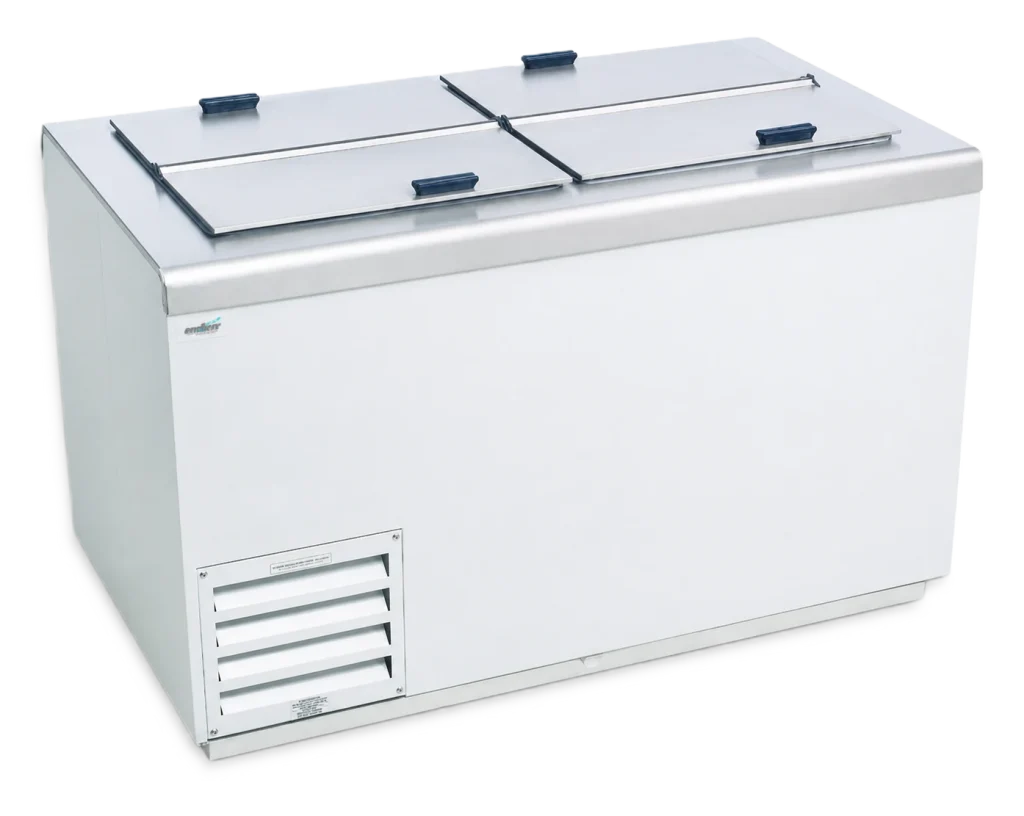

Heavy duty cold wall storage freezer with stainless steel top and lids in four sizes from 5 to 23 cubic feet, -14°F to +6°F.
Key Features
- Heavy gauge high grade steel interior/exterior
- Cold wall refrigeration
- Bottom drain for easy defrost
- Heavy-duty stainless-steel top and lids
- 6-foot cord
- Environmentally friendly R-290 refrigerant
- Temperature range of -14°F to +6°F
Advantages
- High-capacity storage
- Low maintenance condenser and cold wall refrigeration system provides low maintenance and operating costs
Complies with 2017 DOE standards for commercial ice cream freezer with solid doors

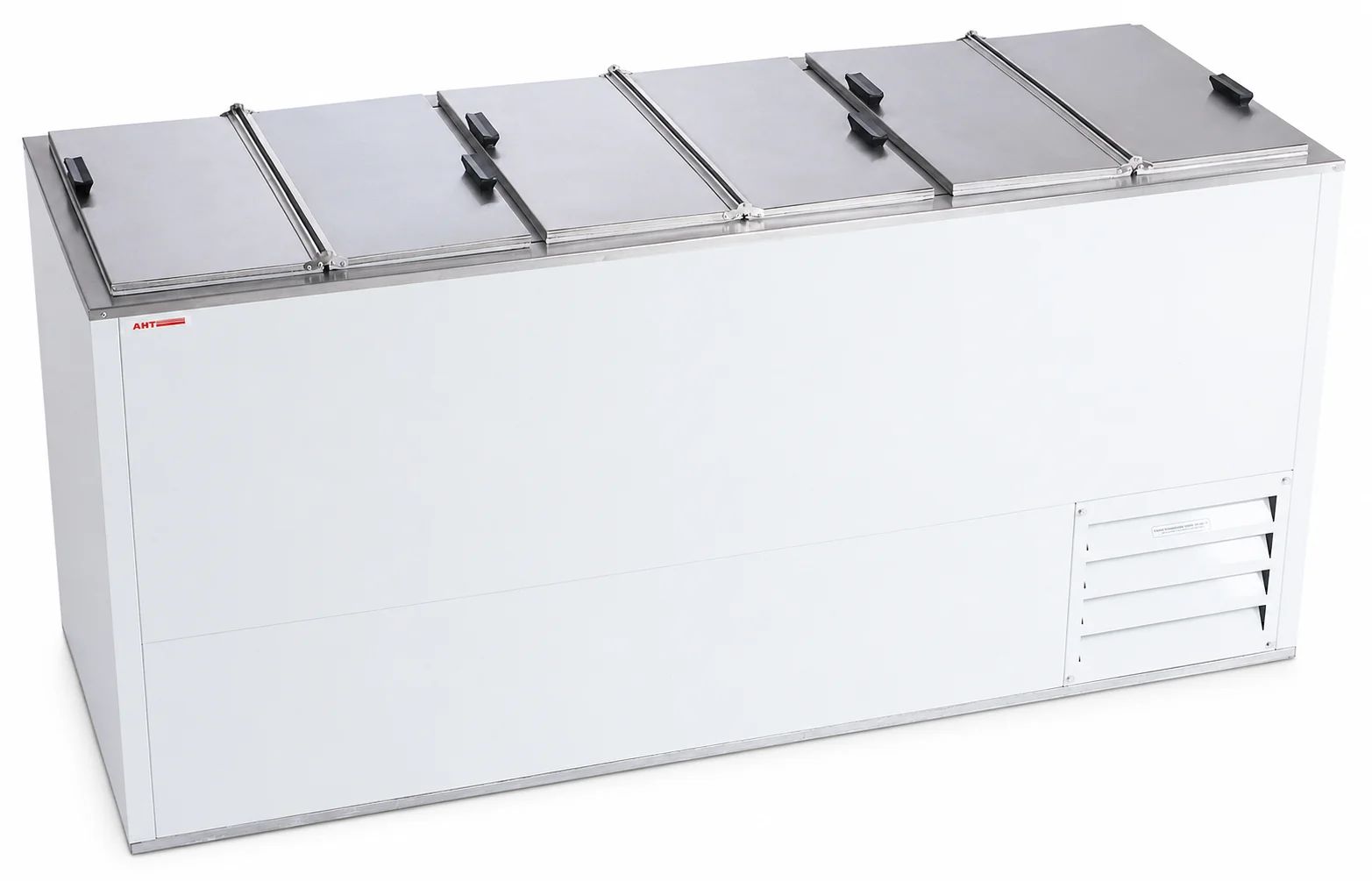

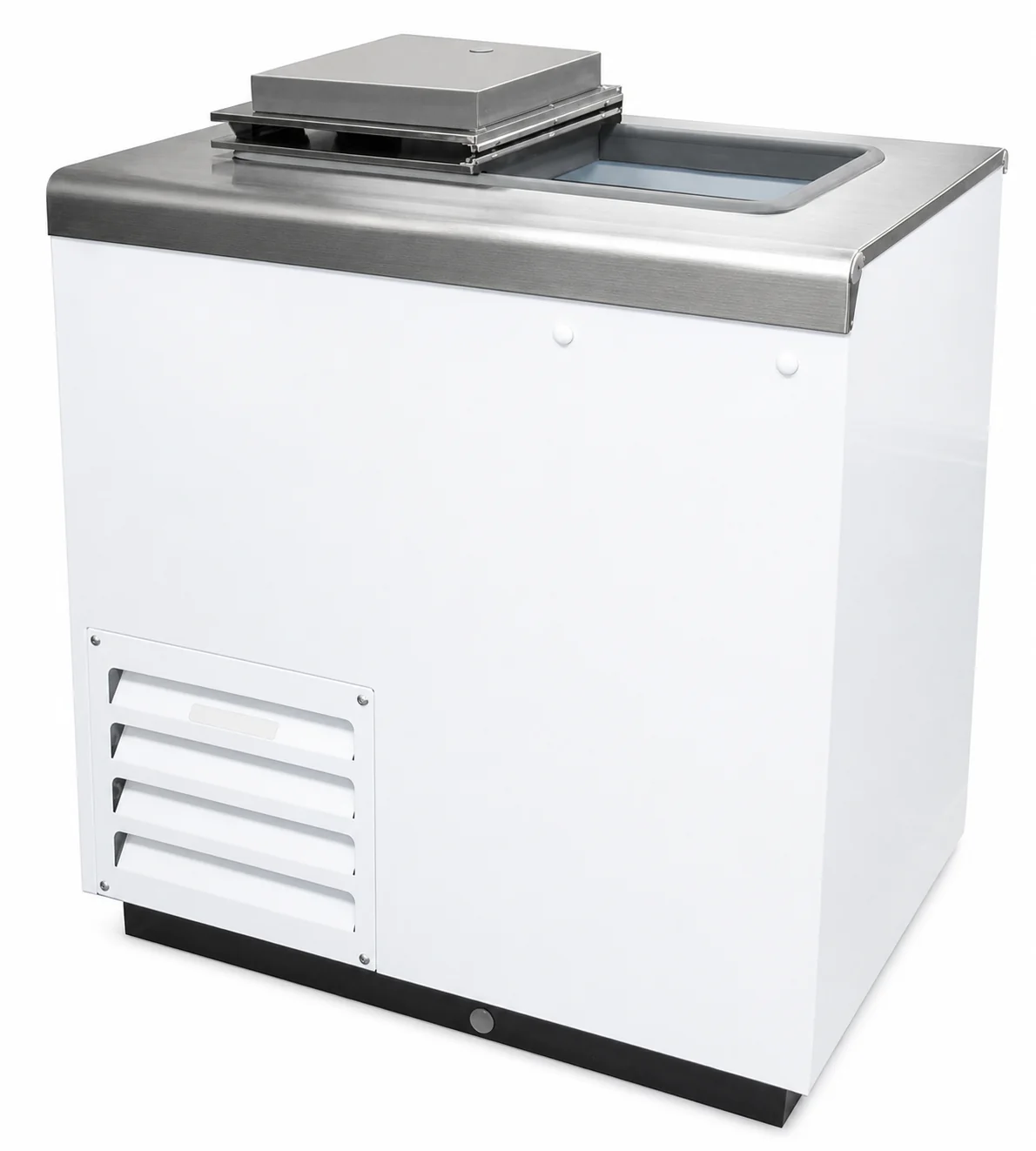

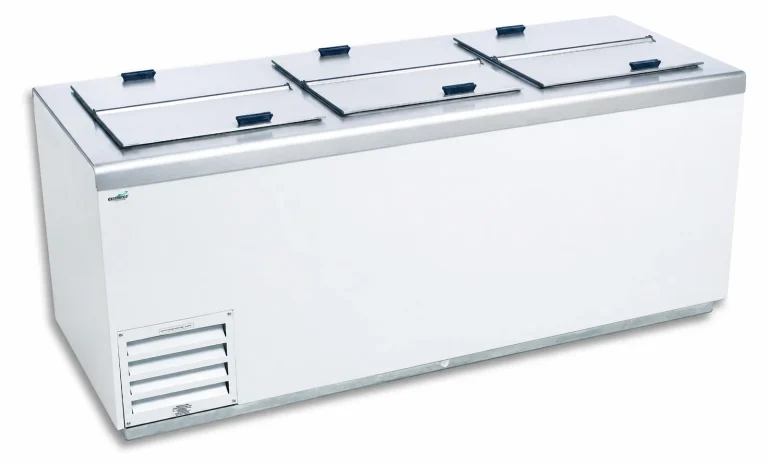

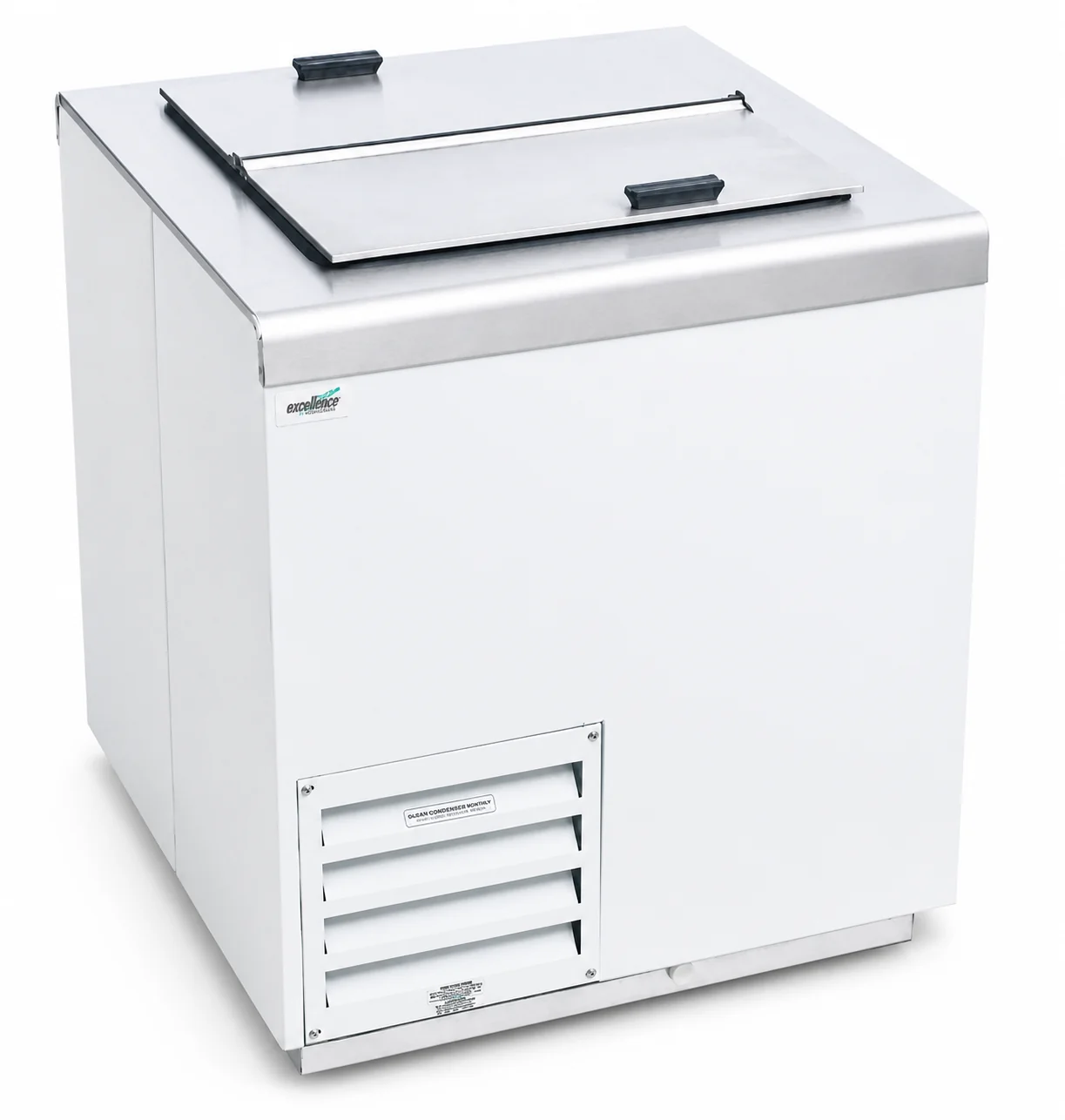

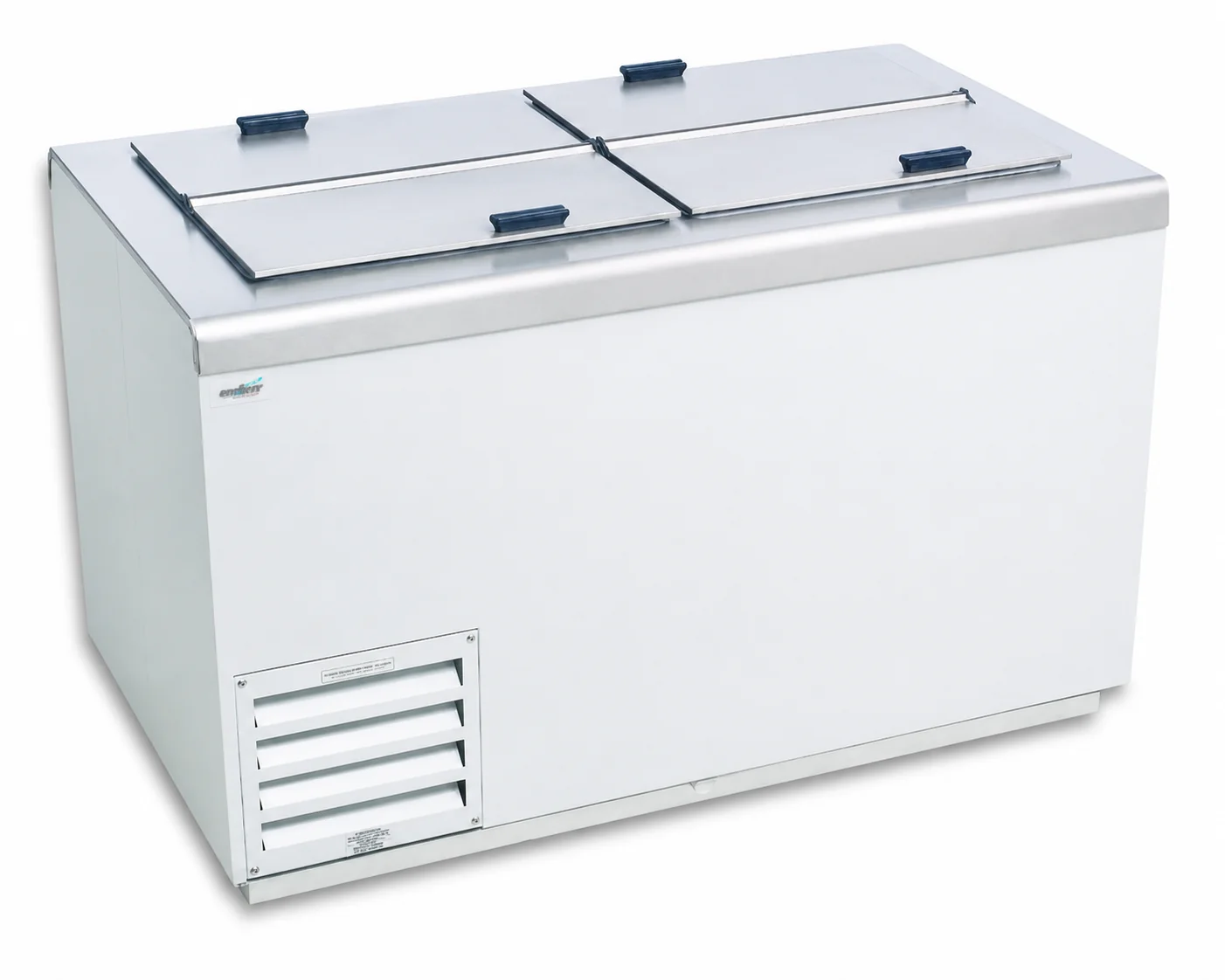

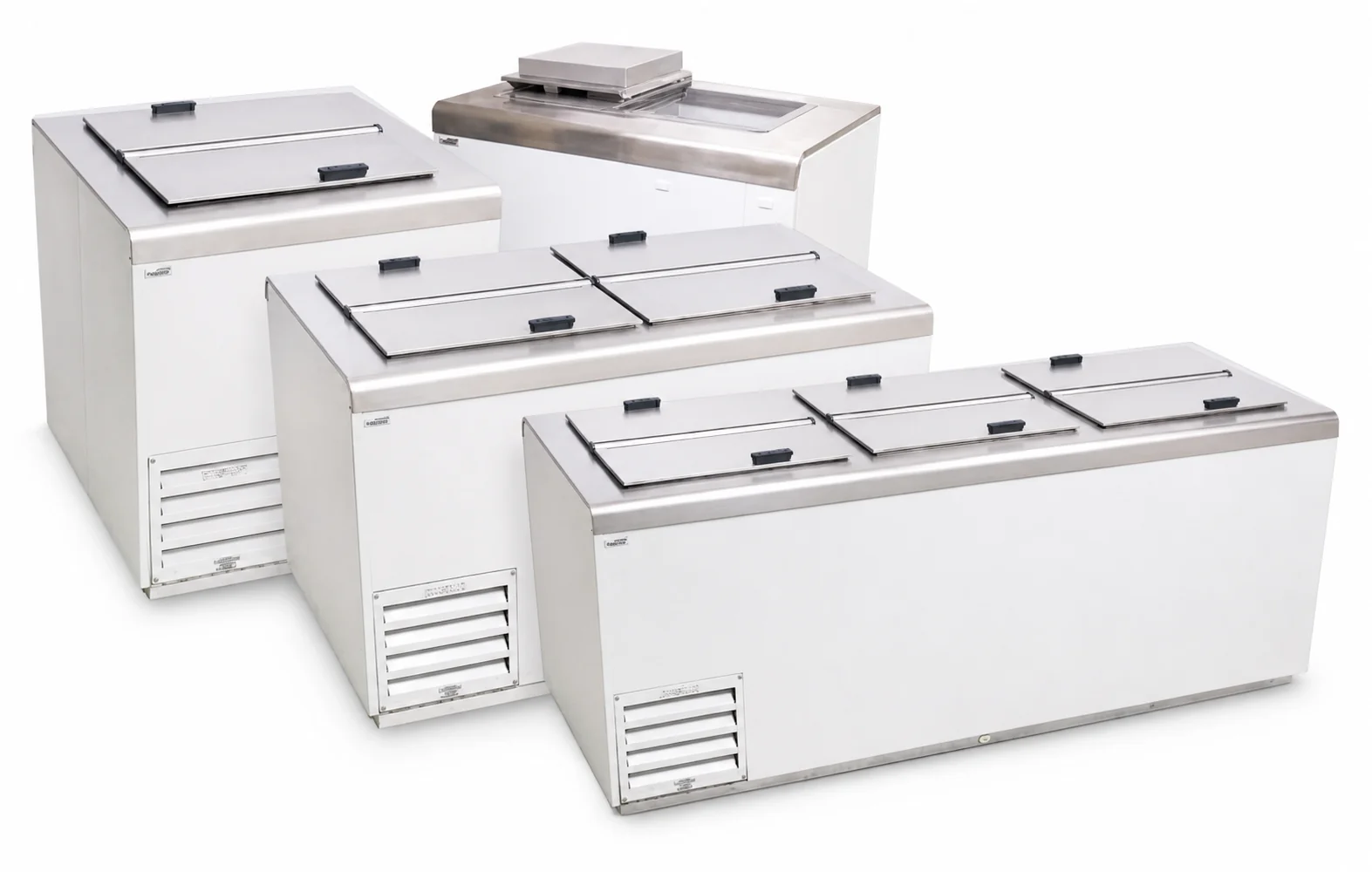

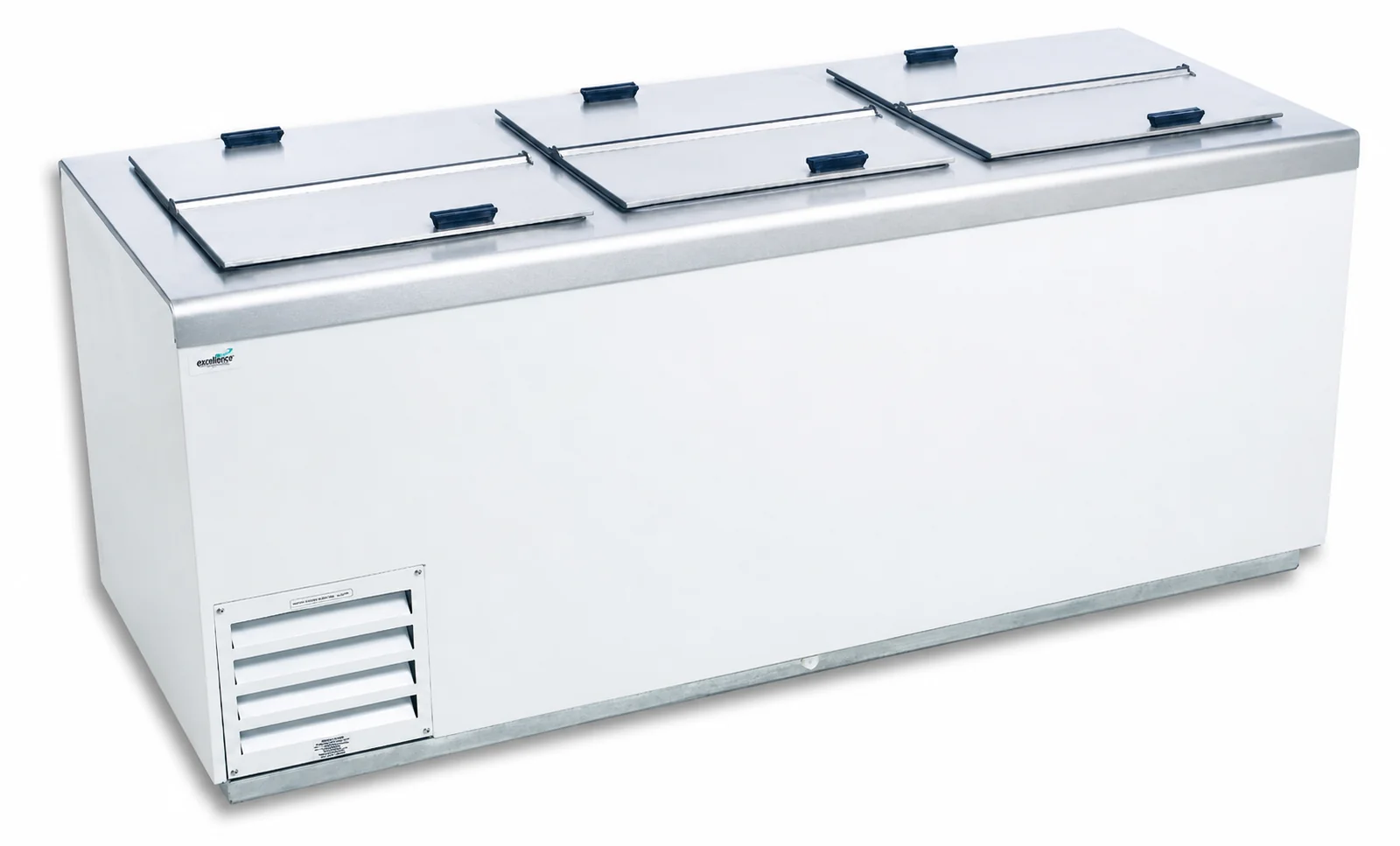

Photos
Specifications
| Model | HFF-2HC | HFF-4HC | HFF-8HC | HFF-12HC |
|---|---|---|---|---|
| Cubic Feet | 5 | 6.6 | 14.3 | 23 |
| Approx. Weight (Net) | 116 lb (53 kg) | 168 lb (76 kg) | 248 lb (113 kg) | 350 lb (159 kg) |
| Approx. Weight (Shipping) | 149 lb (68 kg) | 179 lb (81 kg) | 246 lb (112 kg) | 353 lb (160 kg) |
| Running Amps | 2.5 | 3.3 | 6.7 | 6.8 |
| Compressor HP | 1/5 | 1/5 | 1/3 | 1/3 |
| 3 Gal. Can Capacity / Facing | 4/3 | 7/5 | 19/11 | 33/18 |
| Container Quantity | 110 | 56 | 44 | 28 |
Electrical: NEMA 5-15P · 115 / 60 / 1
Available Options
- Graphics
- Locking bar
- Casters
- Dipper well

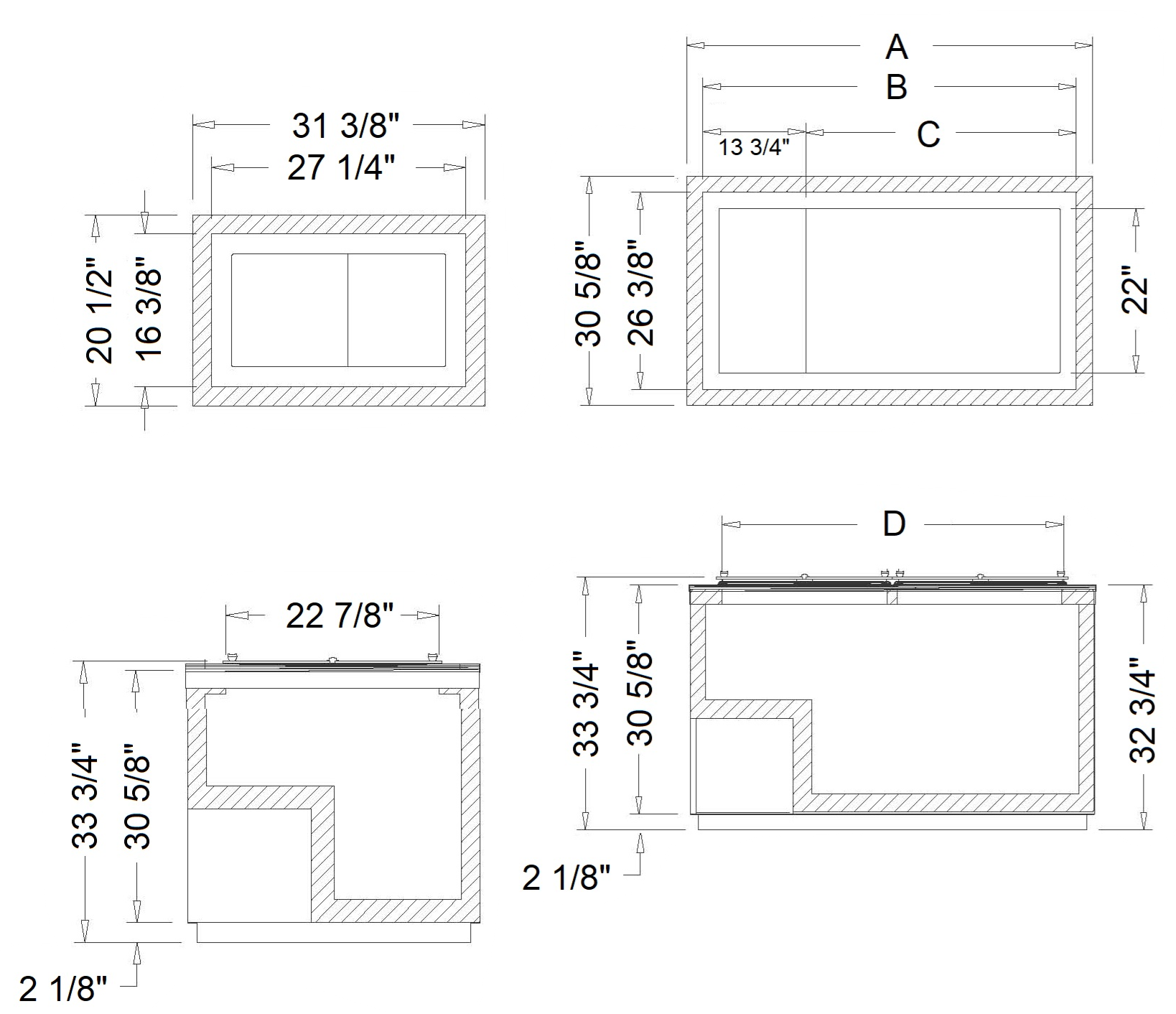

Dimensions
| Model | A | B | C | D |
|---|---|---|---|---|
| HFF-4HC | 30 3/4" | 26 3/8" | 12 5/8" | 22" |
| HFF-8HC | 54 1/4" | 49 7/8" | 36 1/8" | 45 1/2" |
| HFF-12HC | 80 3/4" | 76 3/8" | 62 5/8" | 72" |
