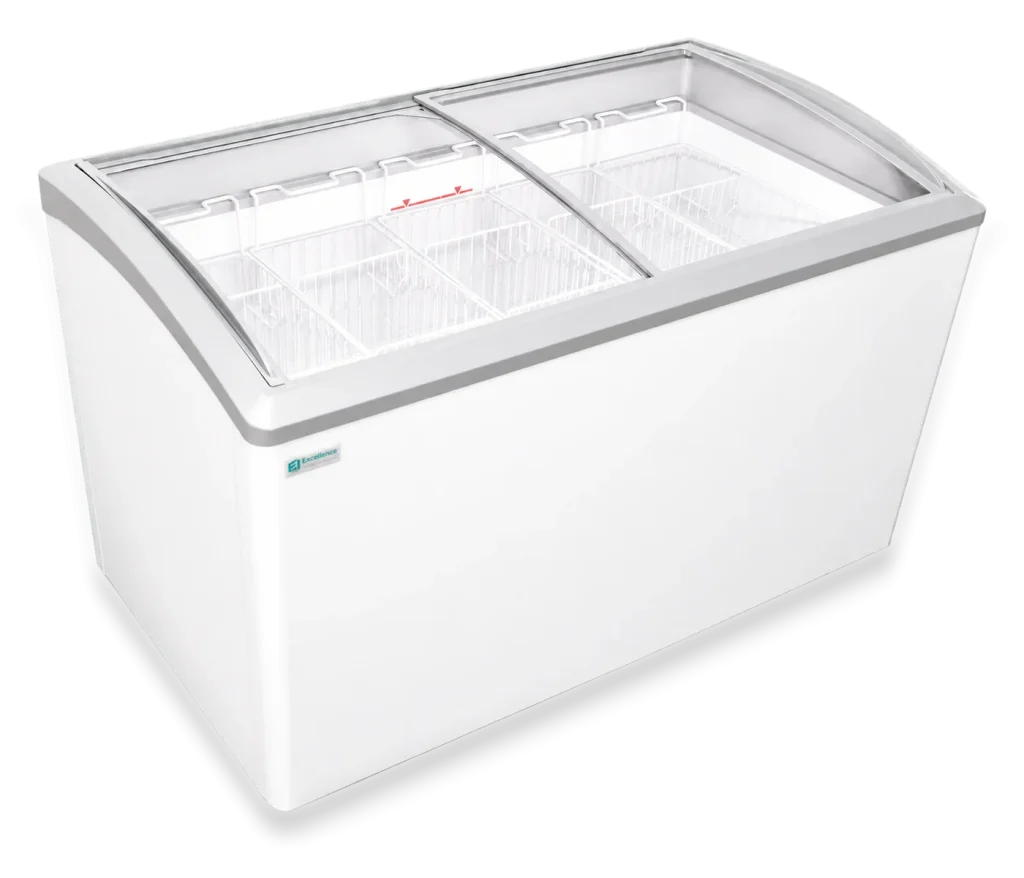

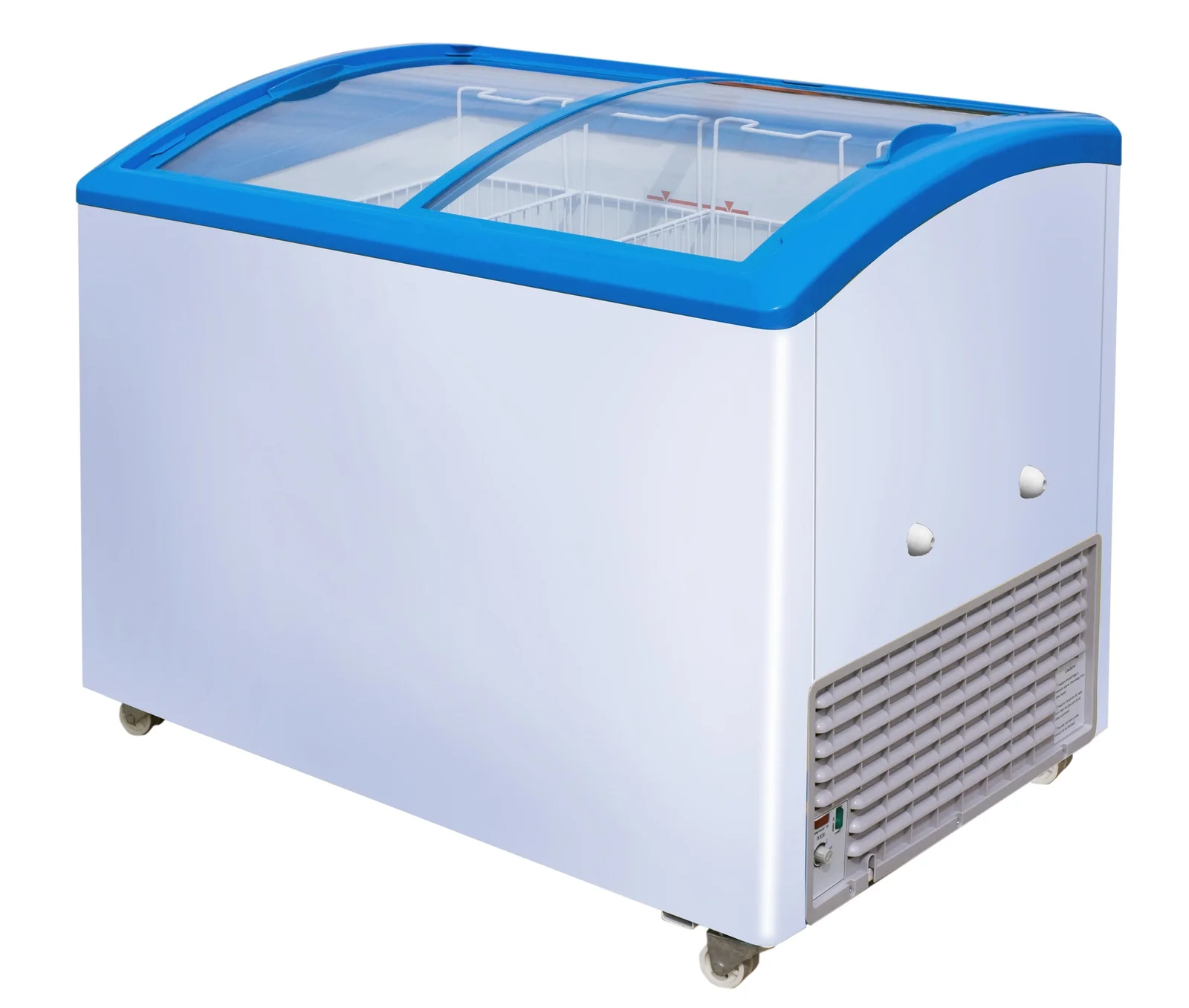

Curved-lid display freezer in six widths from 6.3 to 18.5 cubic feet, with included baskets and a temperature range of -15°F to +15°F.
Key Features
- Single layer heat reflective lids
- Baskets with product dividers included
- LED lighted interior
- Cold wall evaporator
- Casters with 2 locking
- 12.75-foot cord / 9.75-foot accessible cord
- Environmentally friendly R-290 refrigerant
- Temperature range of -15°F to +15°F
Advantages
- Curved-lid format supports clear merchandising
- Six model widths scale from compact to high-capacity display programs
- Included baskets and dividers support organized presentation and stocking
- Extra storage below baskets
Complies with 2017 DOE standards for commercial freezer and commercial ice cream freezer

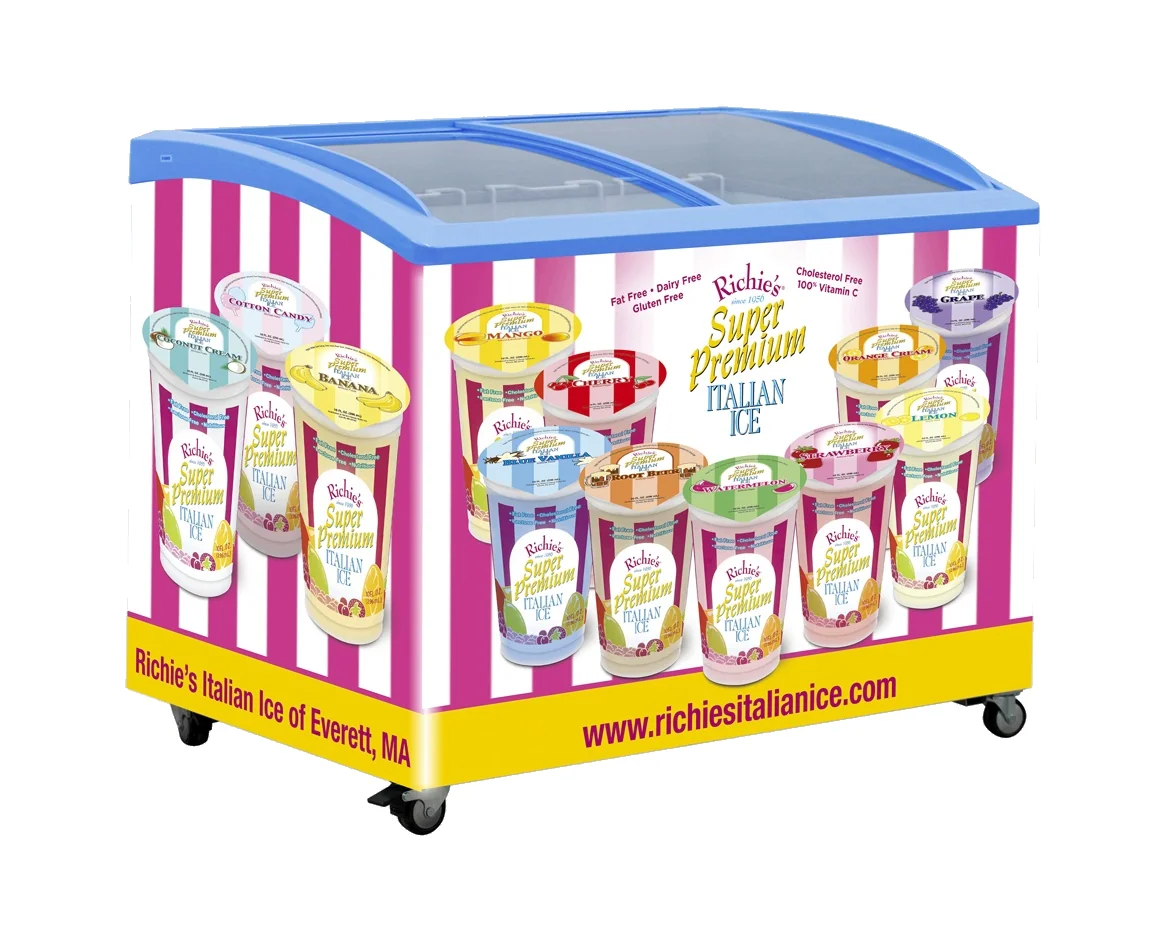

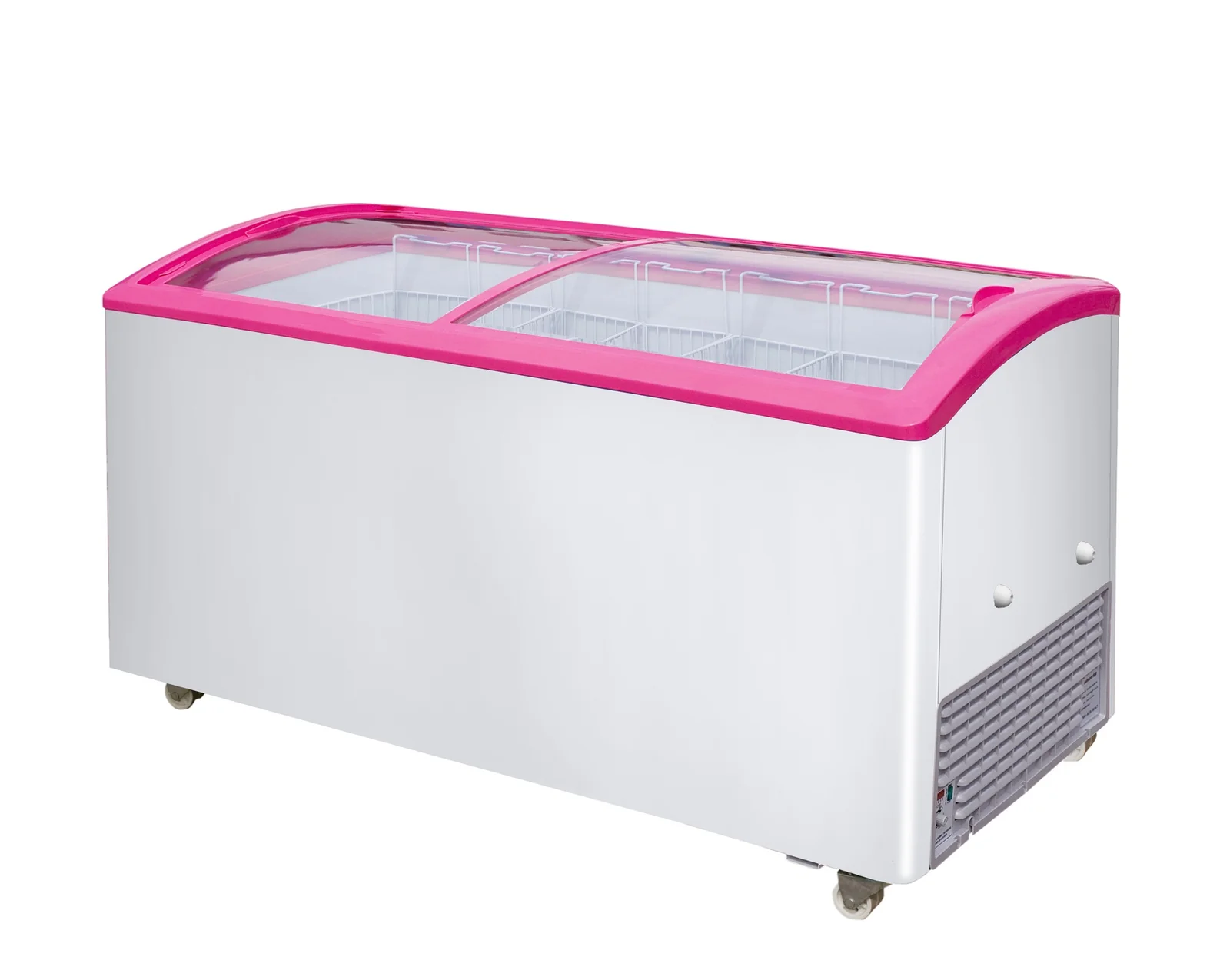

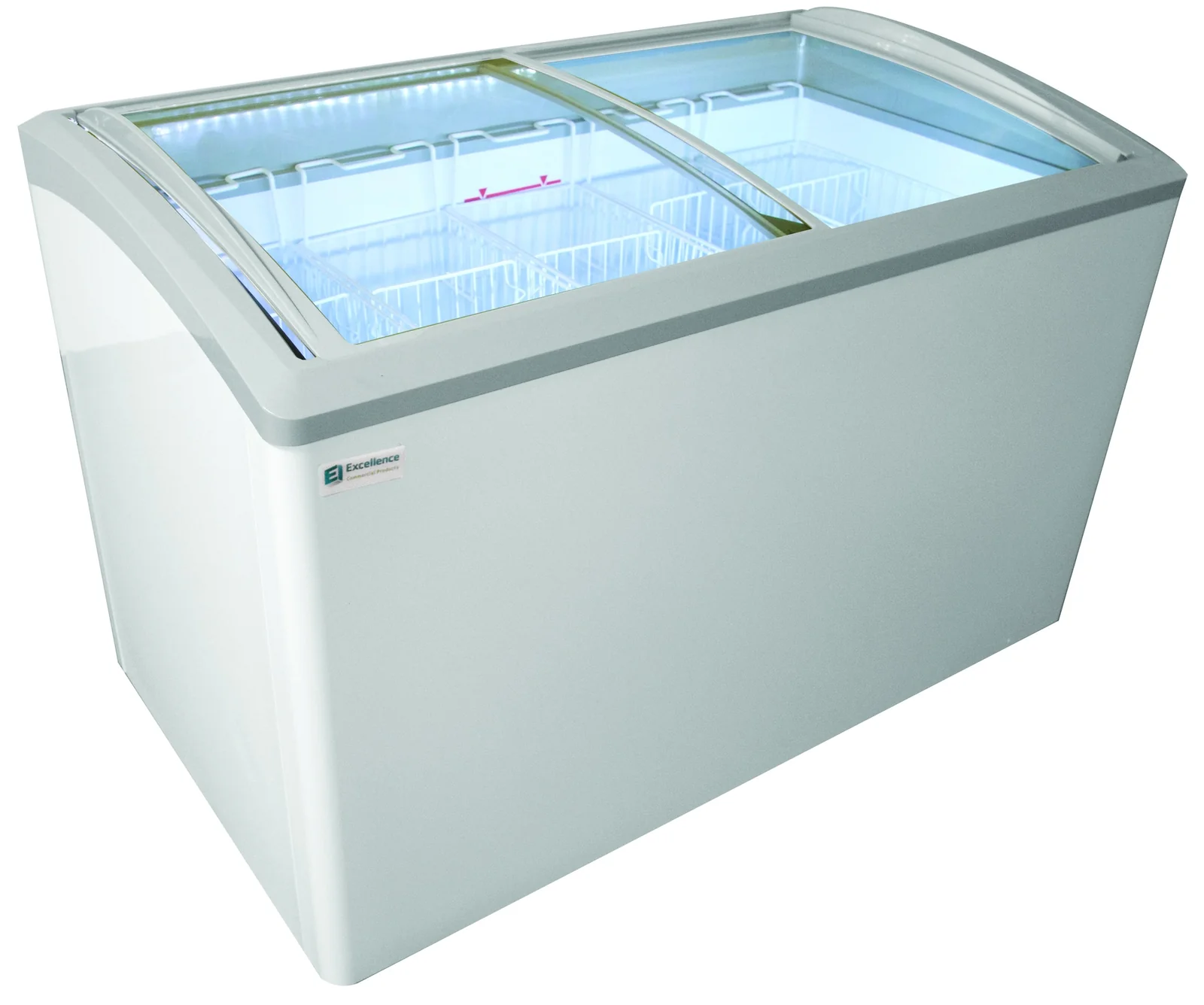

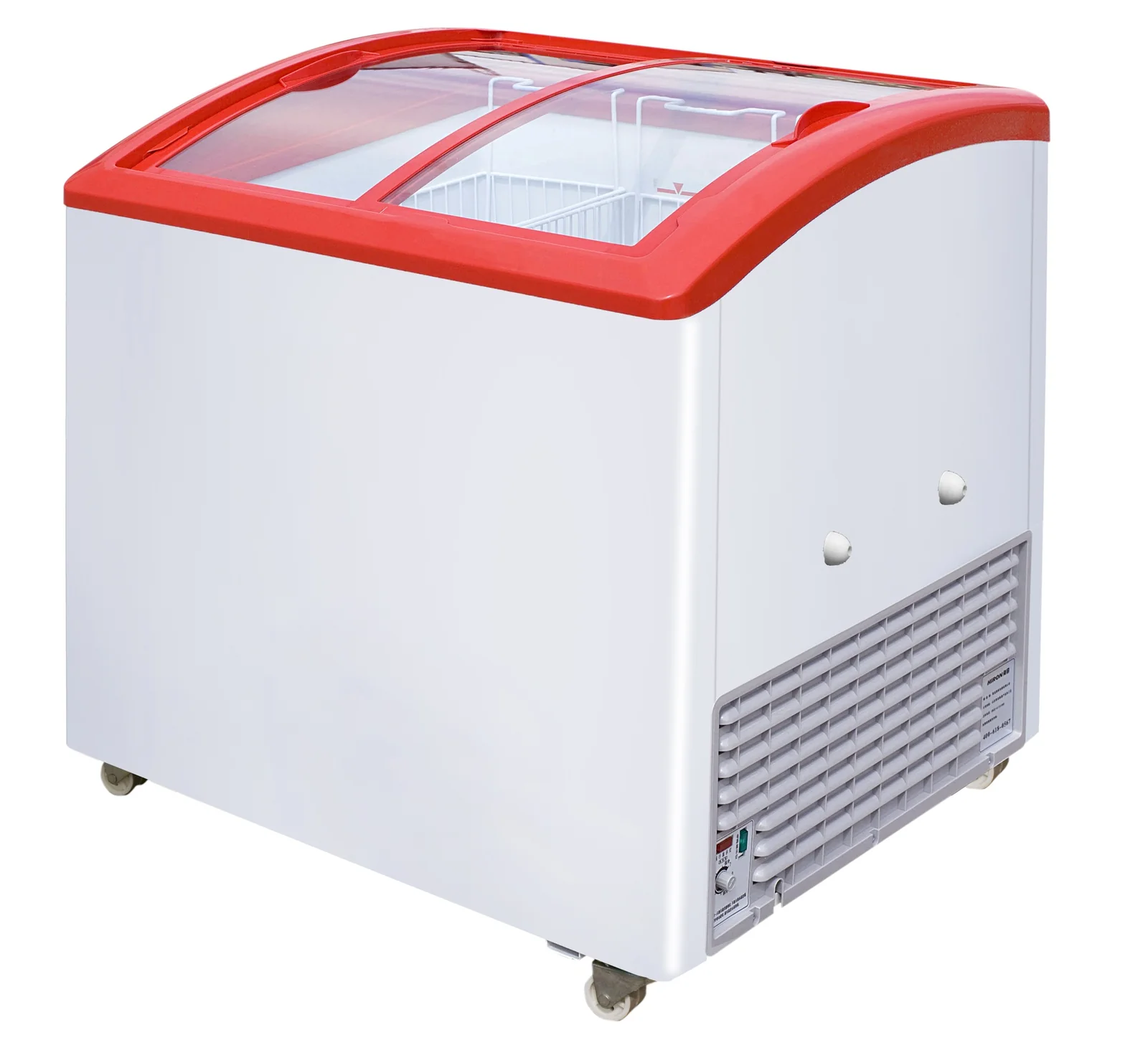

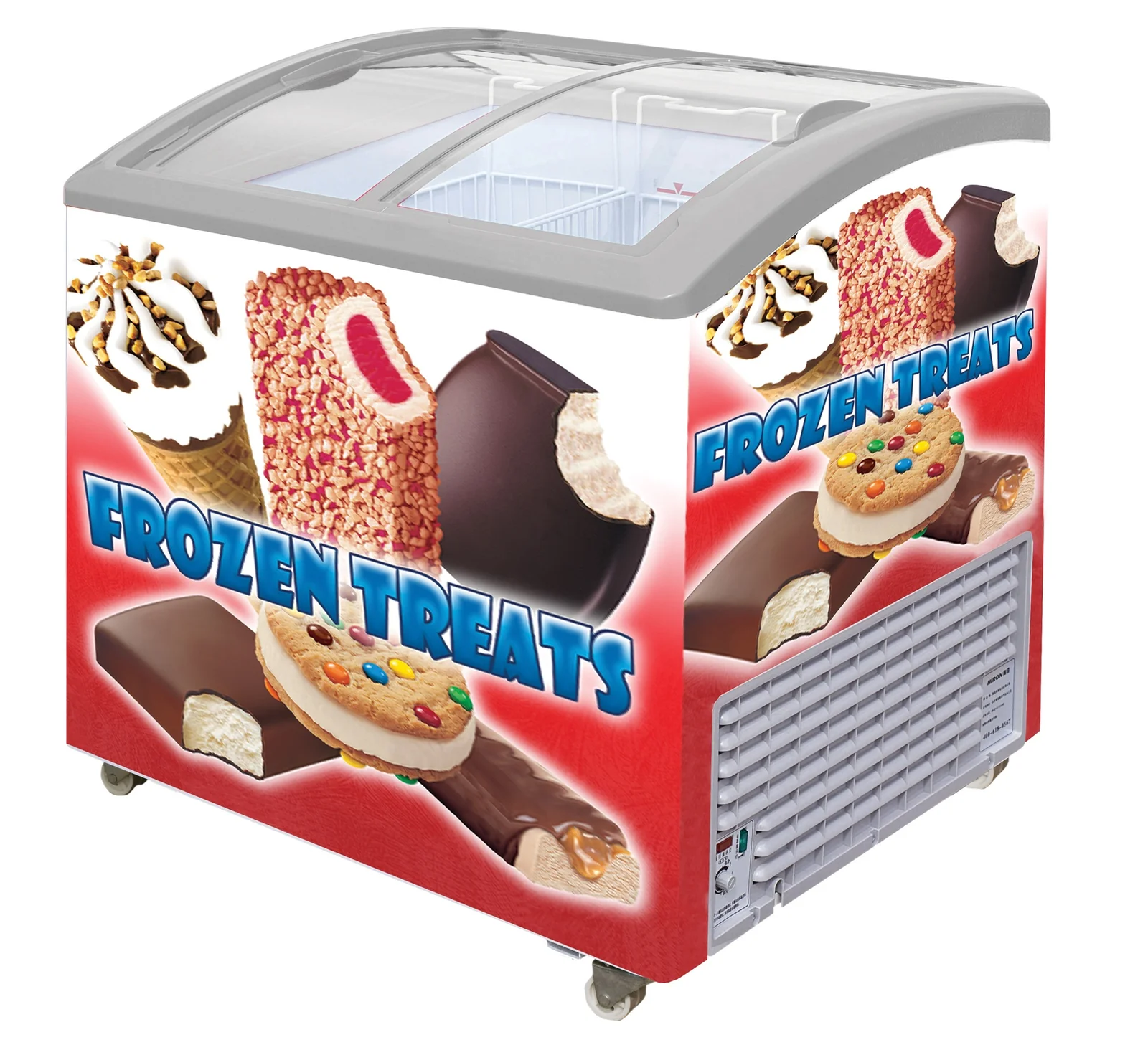

Photos
Specifications
| Model | VB-2HC | VB-3HC | VB-4HC | VB-5HC | VB-6HC | VB-7HC |
|---|---|---|---|---|---|---|
| Cubic Feet | 6.3 | 7.3 | 10.4 | 12.9 | 16.3 | 18.5 |
| Approx. Weight (Net) | 112 lb (51 kg) | 117 lb (53 kg) | 146 lb (66 kg) | 166 lb (75 kg) | 188 lb (85 kg) | 202 lb (92 kg) |
| Approx. Weight (Shipping) | 128 lb (58 kg) | 133 lb (60 kg) | 159 lb (72 kg) | 181 lb (82 kg) | 202 lb (92 kg) | 222 lb (101 kg) |
| Running Amps | 1.3 | 1.3 | 1.4 | 2.0 | 2.0 | 3.0 |
| Compressor HP | 1/7 | 1/7 | 1/5 | 1/4 | 1/4 | 1/5 |
| Baskets | 2 | 3 | 4 | 5 | 6 | 7 |
| Container Quantity | 126 | 117 | 94 | 80 | 66 | 57 |
Electrical: NEMA 5-15P · 115 / 60 / 1
Available Options
- Graphics
- Lock and key
- Built in analog thermometer - full container orders only
- False bottoms

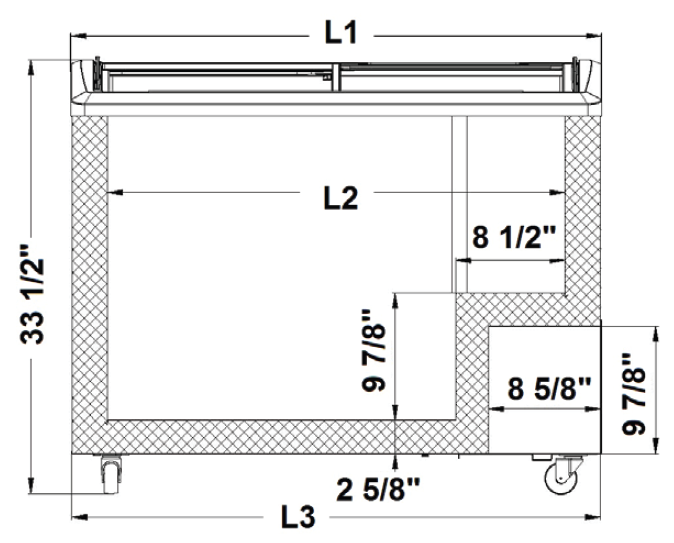

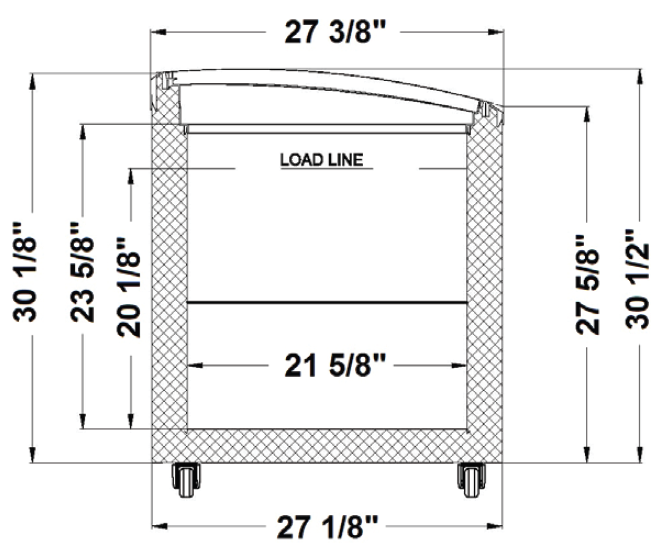

Dimensions
| Model | L1 | L2 | L3 |
|---|---|---|---|
| VB-2 | 28 1/2" | 22 7/8" | 28 3/8" |
| VB-3 | 31 1/2" | 25 7/8" | 31 3/8" |
| VB-4 | 41 1/8" | 35 1/2" | 41" |
| VB-5 | 48 7/8" | 41 1/8" | 48 5/8" |
| VB-6 | 59 1/2" | 53 3/4" | 59 1/4" |
| VB-7 | 66 3/8" | 60 5/8" | 66 1/8" |
